Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 9750150 Rear Panel Appelez-nous -
6 9782257 Oven Lock Assembly Appelez-nous -
7 9780265 Screw, 10-16 X 3/8 Appelez-nous -
12 9782117 Switch, Interlock Appelez-nous -
13 9750887 Screw, 4-40 X 1 Appelez-nous -
14 9750888 Nut (2) Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
16 9780881 Ballast, Lamp Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

18 WP112432 Nut, Terminal Block   (Replaces: 112432) Special Order $ 7.16

19 98884 Screw, 10-16 X 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

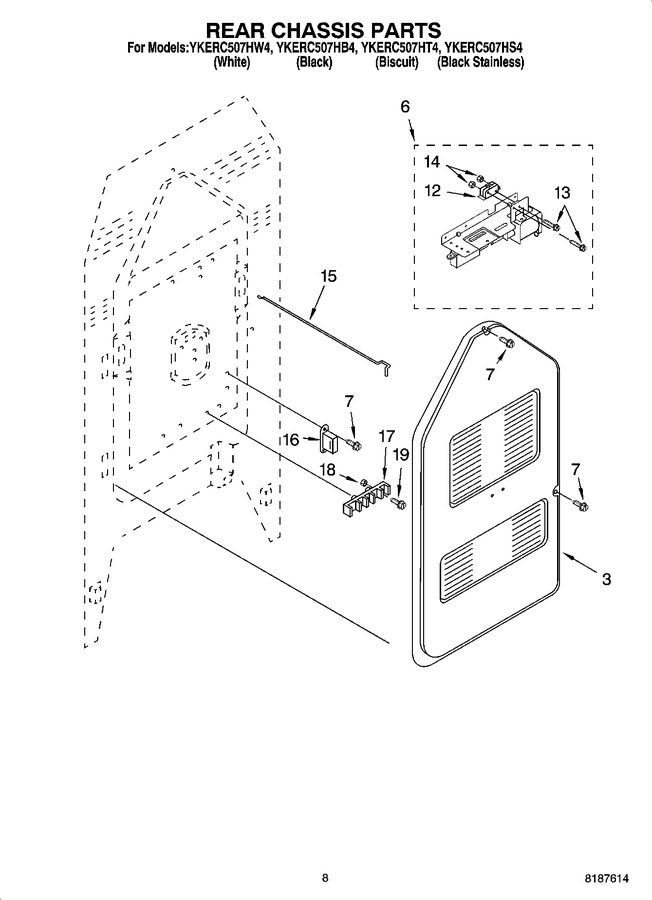

Diagram for YKERC507HW4
