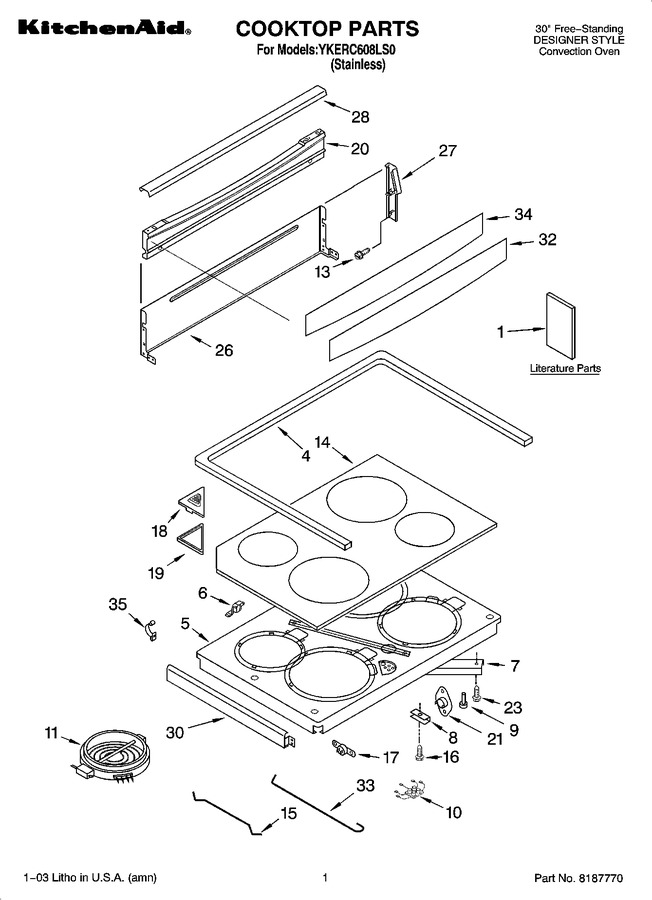

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9755631 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9754287 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT9754287F | Literature Parts (use & Care Guide (french)) |
|
- | |||||
| 1 | LIT9754365 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT9754373 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9752775 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT4449264 | Literature Parts (guide, Easy Set) |
|
- | |||||
| 1 | LIT4448687 | Literature Parts (guide, Easy Set (french)) |
|
- | |||||
| 1 | LIT8300643 | Literature Parts (guide, Cleaner Use) |
|
- | |||||
| 4 | 9781614 | Gasket, Cooktop |
|
$ 47.02 | |||||
| 5 | 9752892 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9752003 | Washer, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Clip, Support (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (4) (Replaces: 9780771) |
|
$ 72.68 | |||||
| 10 | 9781936 | Hot Light |
|
- | |||||
| 11 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823697 | Element, Surface (2200w - Rr) (Replaces: 8523694) |
|
$ 326.21 | |||||
| 11 | W10823698 | Element, Surface (1800w - Rf) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 13 | 9780265 | Screw |
|
- | |||||
| 14 | 9753711CB | Cooktop, Ceran |
|
- | |||||
| 15 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 16 | 9751871 | Screw |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 17 | 9780265 | Screw, (4) |
|
- | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent Cover |
|
- | |||||
| 20 | 9781896GB | Backsplash |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 23 | 9780272 | Screw |
|
- | |||||
| 26 | 9751664 | Cover, Backsplash |
|
- | |||||
| 27 | 9781885FB | Endcap, Backsplash ((right Hand)) |
|
- | |||||
| 27 | 9781884FB | Endcap, Backsplash (left Hand) |
|
- | |||||
| 28 | 9751632 | Cover, Light |
|
- | |||||
| 30 | 9751275PB | Trim, Cooktop (right Hand) |
|
- | |||||
| 30 | 9751276PB | Trim, Cooktop (left Hand) |
|
- | |||||
| 32 | 9782021 | Glass, Backsplash |
|
- | |||||
| 33 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 34 | 9781987 | Panel, Backguard (stainless) |
|
- | |||||
| 35 | WP98997 | Clip, Wire (Replaces: 98997) |
|
$ 9.98 |
