Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751051 Back Panel, Chassis Appelez-nous -
3 9751353 Panel, Rear Cover Appelez-nous -
7 9782599 Oven Lock Assembly Appelez-nous -
8 9755444 Suppressor, Trans Special Order $ 62.24

11 9780265 Screw Appelez-nous -
12 9782106 Switch, Interloc Special Order $ 37.21

13 9750887 Screw Appelez-nous -
14 9750888 Nut Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

19 9751798 Vent Back, Oven Appelez-nous -
20 98884 Screw Appelez-nous -
21 423247 Screw Appelez-nous -
22 WP112432 Nut   (Replaces: 112432) Special Order $ 7.16

23 WP681414 Screw, Grounding   (Replaces: 690989) In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

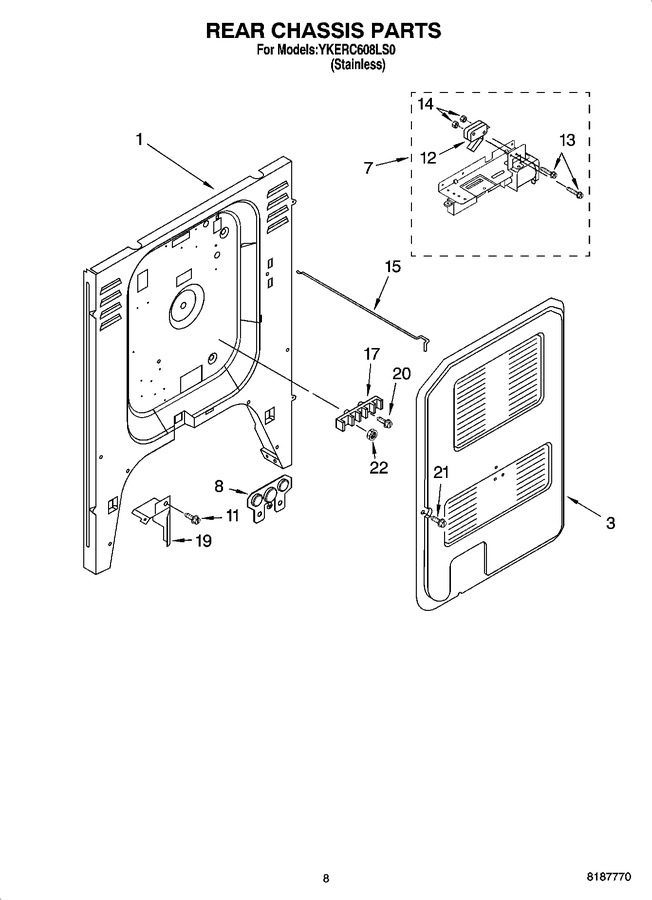

Diagram for YKERC608LS0
