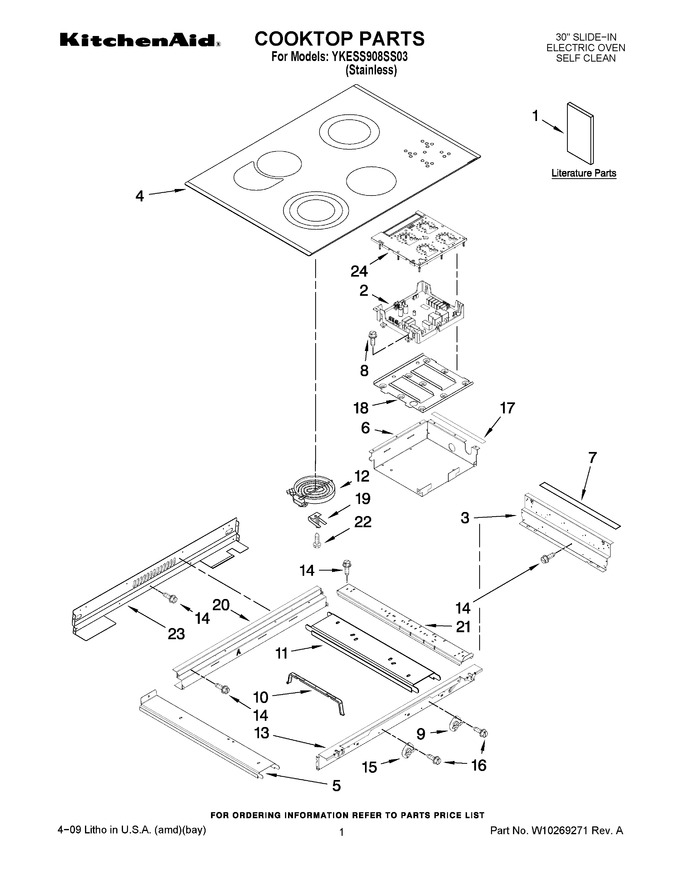

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10118260 | Installation Instructiions |
|
- | |||||
| 1 | W10190622 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10162197 | Use & Care Guide (french) |
|
- | |||||
| 1 | W10112131 | Tech Sheet (english) |
|
- | |||||
| 1 | W10112134 | Tech Sheet (french) |
|
- | |||||
| 1 | 9763467 | Easy Set Guide |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | 8285348 | Module, Appliance Manager |
|
$ 321.25 | |||||
| 3 | 9761422 | Frame, Cooktop Side |
|
$ 67.87 | |||||
| 4 | W10110273 | Cooktop |
|
- | |||||
| 5 | 9757824 | Rail, Element Side |
|
$ 60.29 | |||||
| 6 | 9761638 | Box, Tap Touch |
|
- | |||||
| 7 | W10076030 | Gasket (2) |
|
$ 78.51 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 121.57 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | 9757825 | Rail, Element (center (1)) |
|
- | |||||
| 12 | 4453908 | Element, Surface (lf/2300w) |
|
$ 155.12 | |||||
| 12 | 4453910 | Element, Surface (rr/1900w) |
|
$ 142.33 | |||||
| 12 | WP4453907 | Element, Surface (rf/1500w) (Replaces: 4453907) |
|
Immediately | $ 256.28 | ||||
| 12 | W10203295 | Element, Surface (lr/1000w) |
|
$ 285.64 | |||||
| 13 | 9761423 | Frame, Cooktop Front |
|
$ 43.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 9761663 | Seal, Heat |
|
$ 56.53 | |||||
| 18 | 9757815 | Support, Module |
|
$ 43.94 | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 20 | 9761768 | Frame, Cooktop Rear |
|
$ 73.35 | |||||
| 21 | 9763517 | Rail, Element (2) |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 23 | 9761723 | Cover, Cooktop Rear |
|
$ 65.23 | |||||
| 24 | WP9757063 | Module, Tap Touch (Replaces: 9757063) |
|
Immediately | $ 374.99 |
