Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10156272 Control Panel Special Order $ 190.83

2 W10110246 Gasket, Console Special Order $ 123.31

3 W10181439 Control, Electric Special Order $ 483.37

4 W10105370 Shield, Console Vent Special Order $ 69.83

5 W10117524 Bracket, Console Special Order $ 36.94

6 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47

7 9761745 Bracket, Thermostat (2) Special Order $ 40.75

8 W10116195 Gasket, Vent Shield Special Order $ 77.94

9 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

10 9780271 Screw Appelez-nous -
11 WP9761566 Membrane, Switch   (Replaces: 9761566) In-Stock Immediately $ 405.23


    View Diagram in Separate Window     Print Icon   Print Part List

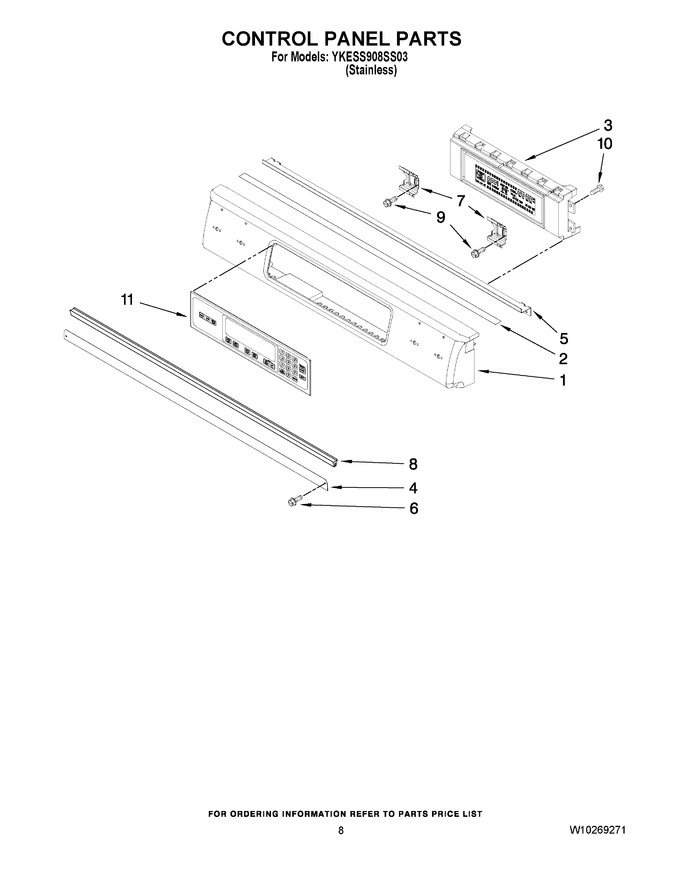

Diagram for YKESS908SS03
