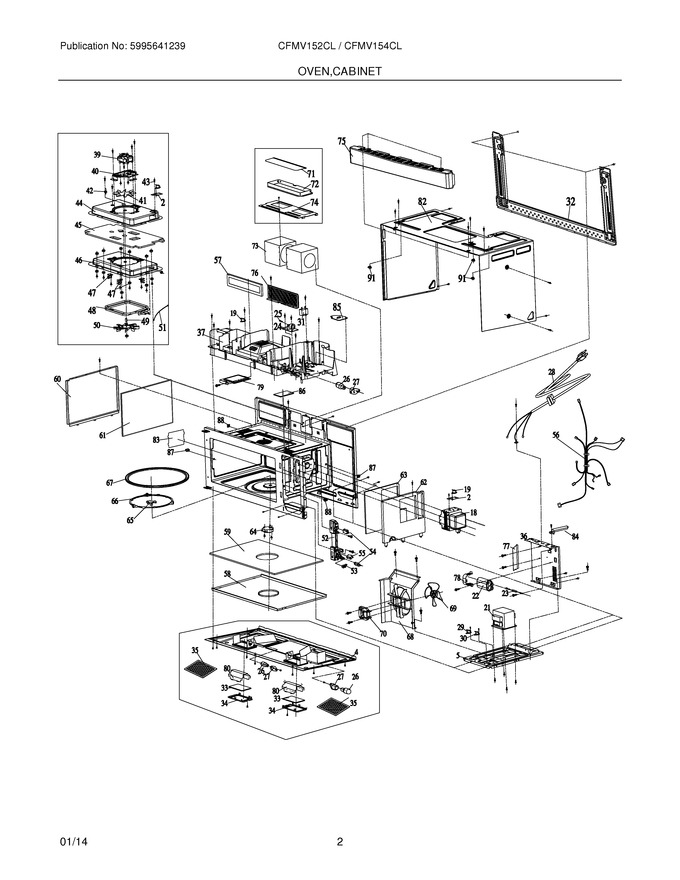

03 - Oven,cabinet
05 - Control Panel,door,miscellaneous
06 - Wirng Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304472439 | Bracket,thermostat |
|
$ 18.43 | |||||
| 4 | 5304472476 | Cover,unit Base |
|
$ 257.51 | |||||
| 5 | 5304464063 | Base,transformer ,right Side |
|
$ 103.01 | |||||
| 26 | 5304461116 | Lamp (Replaces: 5304464090) |
|
Immediately | $ 44.94 | ||||
| 32 | 5304520948 | Plate,mounting ,rear (Replaces: 5304464255) |
|
$ 106.70 | |||||
| 33 | 5304464103 | Lens,cooktop Lamp ,glass |
|
$ 39.53 | |||||
| 34 | 5304464102 | Frame,lens Holder |
|
- | |||||
| 36 | 5304472451 | Duct,hood Intake ,right Side |
|
- | |||||
| 37 | 5304478914 | Duct,air |
|
- | |||||
| 40 | 5304478916 | Bracket,motor Mount |
|
- | |||||
| 44 | 5304480192 | Insulator,heat |
|
- | |||||
| 45 | 5304480193 | Insulation,fiberglass |
|
- | |||||
| 46 | 5304480194 | Cover,heater |
|
- | |||||
| 47 | 5304480195 | Support,heater |
|
- | |||||
| 49 | 5304480197 | Bushing,motor Shaft |
|
- | |||||
| 52 | 5304509457 | Latch Hook (Replaces: 5304464096) |
|
Immediately | $ 43.79 | ||||
| 58 | 5304480199 | Panel,heat Insulator ,bottom |
|
- | |||||
| 59 | 5304480200 | Insulation,fiberglass ,bottom |
|
- | |||||
| 60 | 5304480201 | Insulator,heat ,left |
|
- | |||||
| 61 | 5304480202 | Insulation,fiberglass ,left |
|
- | |||||
| 62 | 5304480203 | Insulator,heat ,right |
|
- | |||||
| 63 | 5304480204 | Insulation,fiberglass ,right |
|
- | |||||
| 65 | 5304509622 | Coupler,turntable/motor (Replaces: 5304472494) |
|
$ 21.02 | |||||
| 66 | 5304509438 | Support,turntable Ring (Replaces: 5304464115) |
|
$ 52.20 | |||||
| 67 | 5304509621 | Turntable,tray ,glass (Replaces: 5304464116) |
|
$ 154.61 | |||||
| 68 | 5304478920 | Duct,cooling Fan |
|
$ 72.38 | |||||
| 71 | 5304509486 | Damper,door ,exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 27.73 | ||||
| 72 | 5304509485 | Frame,damper Housing ,exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 25.32 | ||||
| 74 | 5304472453 | Cover,vent Motor |
|
$ 167.95 | |||||
| 75 | 5304472493 | Grille Assy,exhaust ,stainless |
|
$ 322.29 | |||||
| 76 | 5304464256 | Cover,control Shield ,right |
|
$ 64.16 | |||||
| 77 | 5304472454 | Vent,air ,magnetron |
|
$ 62.79 | |||||
| 78 | 5304464123 | Retainer,capacitor Strap |
|
- | |||||
| 79 | 5304464111 | Cover,lamp ,oven Cavity |
|
- | |||||
| 80 | 5304464104 | Cover,lamp |
|
$ 59.27 | |||||
| 82 | 5304472455 | Cabinet,outer Casing ,black |
|
- | |||||
| 83 | 5304509435 | Cover,waveguide (Replaces: 5304464061) |
|
Immediately | $ 13.74 | ||||
| 84 | 5304478922 | Spacer,duct |
|
- | |||||
| 85 | 5304480205 | Baffle,air Duct |
|
- | |||||
| 86 | 5304478923 | Lens,cavity Lamp ,glass |
|
- | |||||
| 87 | 5304509642 | Support,shelf ,a (Replaces: 5304478924) |
|
Immediately | $ 14.55 | ||||
| 88 | 5304509643 | Support,shelf ,b (Replaces: 5304478925) |
|
$ 13.83 | |||||
| 91 | 5304509436 | Mounting Nut Kit (Replaces: 5304464598) |
|
Immediately | $ 14.71 | ||||
| F18 | 5304519335 | Magnetron,high Voltage (Replaces: 5304472445) |
|
$ 354.20 | |||||
| F19 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 21.78 | ||||
| F21 | 5304515184 | Transformer,power ,hv (Replaces: 5304464075) |
|
Immediately | $ 423.01 | ||||
| F22 | 5304528930 | Capacitor,high Voltage (Replaces: 5304464253) |
|
$ 66.51 | |||||
| F23 | 5304509479 | Diode,high Voltage (Replaces: 5304472472) |
|
$ 28.30 | |||||
| F24 | 5304509452 | Filter,noise ,electronic (Replaces: 5304472447) |
|
Immediately | $ 75.74 | ||||
| F25 | 5304509451 | Fuse (Replaces: 5304464087) |
|
Immediately | $ 13.01 | ||||
| F27 | 5304464091 | Lampholder,socket |
|
Immediately | $ 65.73 | ||||
| F28 | 5304512501 | Power Cord,electric (Replaces: 5304464092) |
|
$ 106.27 | |||||
| F29 | 5304509474 | Thermostat,cutout ,transformer (Replaces: 5304464093) |
|
Immediately | $ 20.97 | ||||
| F30 | 5304509475 | Thermostat,cutout ,vent Motor (Replaces: 5304464094) |
|
Immediately | $ 19.52 | ||||
| F31 | 5304464095 | Capacitor,start |
|
$ 91.67 | |||||
| F35 | 5304509444 | Filter,grease ,washable (Replaces: 5304478913) |
|
Immediately | $ 83.17 | ||||
| F39 | 5304478915 | Motor,convection Fan |
|
$ 262.24 | |||||
| F41 | 5304514297 | Fan Blade,cooling Fan (Replaces: 5304478917) |
|
$ 11.13 | |||||
| F42 | 5304478918 | Sensor,temperature ,thermistor |
|
$ 104.18 | |||||
| F43 | 5304478919 | Thermostat,160/95 Xh |
|
$ 26.23 | |||||
| F48 | 5304480196 | Element,heater ,convection |
|
$ 148.84 | |||||
| F50 | 5304478928 | Fan Blade,convection |
|
- | |||||
| F51 | 5304480198 | Wire,heater ,thermostat |
|
$ 19.85 | |||||
| F53 | 5304509458 | Lever,switch (Replaces: 5304464097) |
|
Immediately | $ 10.17 | ||||
| F54 | 5304509460 | Switch,interlock (Replaces: 5304464099) |
|
Immediately | $ 45.27 | ||||
| F55 | 5304509459 | Switch,monitor (Replaces: 5304464098) |
|
Immediately | $ 30.84 | ||||
| F56 | 5304480188 | Wiring Harness,main |
|
$ 204.29 | |||||
| F57 | FRPAMRAF | Filter,charcoal ,2`` X 10`` (Replaces: 5304464577) |
|
Immediately | $ 37.86 | ||||
| F64 | 5304509440 | Motor,turntable (Replaces: 5304464113) |
|
$ 118.13 | |||||
| F69 | 5304509473 | Fan Blade,cooling Fan (Replaces: 5304464257) |
|
$ 15.47 | |||||
| F70 | 5304464118 | Motor,cooling Fan |
|
$ 193.40 | |||||
| F73 | 5304491613 | Motor,hood/vent Fan (Replaces: 5304464121) |
|
$ 427.54 | |||||
| NI | 5304472496 | Screw Kit,black |
|
$ 71.56 |
