View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Oven,cabinet

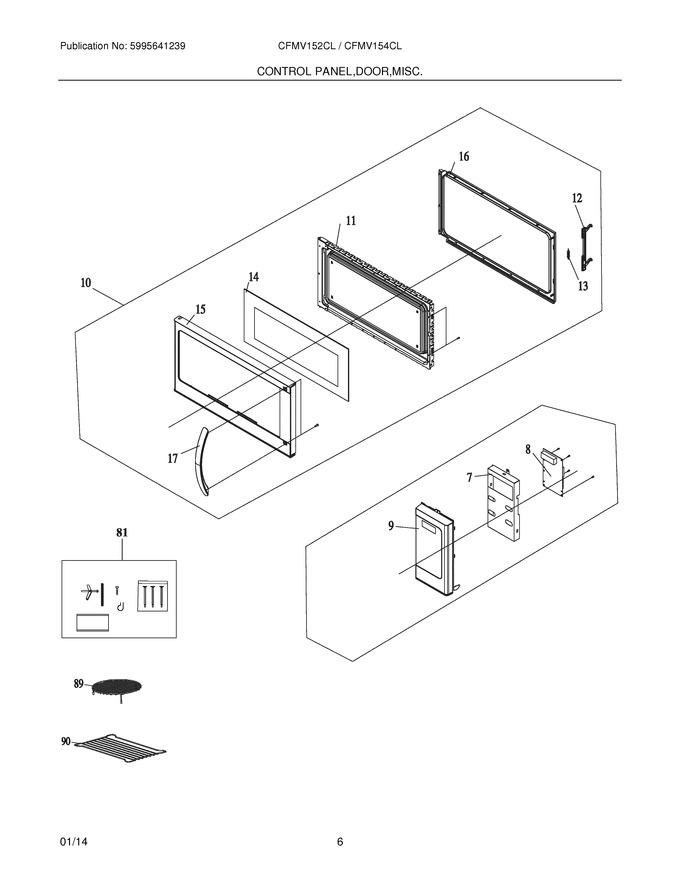

05 - Control Panel,door,miscellaneous
06 - Wirng Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5304464065 | Panel,control Mount ,bracket |
|
$ 68.04 | |||||
| 10 | 5304478899 | Door Assembly,stainless |
|
$ 343.99 | |||||
| 11 | 5304525104 | Panel,inner Door ,black (Replaces: 5304478902) |
|
$ 182.22 | |||||
| 13 | 5304521953 | Spring,door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 14 | 5304464067 | Panel,glass ,black ,outer Door |
|
Immediately | $ 138.09 | ||||
| 15 | 5304477403 | Panel,outer Door ,stainless |
|
$ 656.37 | |||||
| 16 | 5304509640 | Choke Cover,inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| 17 | 5304538972 | Handle Assembly,door ,stainless (Replaces: 5304477401) |
|
$ 56.96 | |||||
| 81 | 5304492057 | Mounting Kit,with Templates |
|
$ 104.74 | |||||
| 89 | 5304478926 | Rack,round ,wire ,3-leg |
|
$ 127.58 | |||||
| 90 | 5304478927 | Shelf,wire |
|
$ 85.05 | |||||
| F12 | 4056021605 | Latch,door (Replaces: 5304477389) |
|
Immediately | $ 3.69 | ||||
| F8 | 5304480187 | Control Board,printed Circuit |
|
$ 265.74 | |||||
| F9 | 5304478896 | Control Panel,w/overlay ,ss |
|
$ 252.17 |
