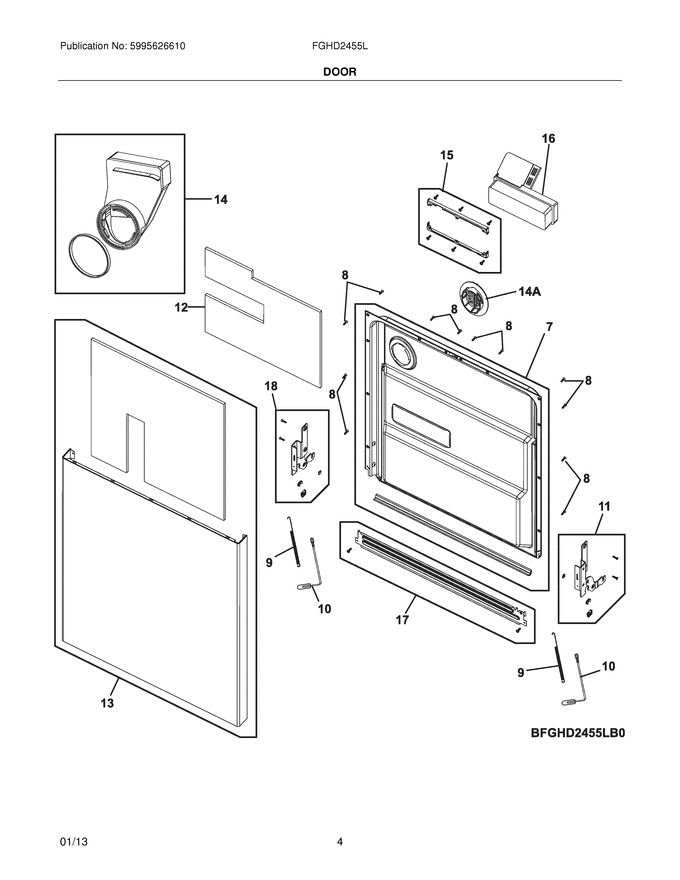

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5304480727 | Liner Assembly,door ,inner ,w/mastic |
|
$ 245.04 | |||||
| 8 | 5304480728 | Screw,door Liner ,(12) |
|
$ 20.48 | |||||
| 9 | 5304530071 | Spring,door ,(2) (Replaces: 5304475581) |
|
Immediately | $ 27.96 | ||||
| 10 | 5304530071 | Cable,door ,(2) (Replaces: 5304475582) |
|
Immediately | $ 27.96 | ||||
| 11 | 5304475583 | Hinge Assembly,rh ,w/screws-spacer |
|
$ 95.68 | |||||
| 12 | 5304475584 | Insulation,door Liner |
|
$ 56.44 | |||||
| 13 | 5304480729 | Door Assembly,outer ,black ,w/insulation |
|
$ 202.49 | |||||
| 14 | 5304480726 | Vent Assembly,door |
|
$ 42.53 | |||||
| 15 | 5304475587 | Bracket Assembly,dispenser ,w/screws |
|
$ 19.14 | |||||
| 17 | 5304475589 | Support Assembly,hinge ,w/screws |
|
$ 47.93 | |||||
| 18 | 5304475590 | Hinge Assembly,lh ,w/screws-spacer |
|
$ 66.49 | |||||
| 14A | 5304480723 | Connector,door Vent |
|
$ 21.97 | |||||
| F16 | 5304507354 | Dispenser Assembly,detergent (Replaces: 5304475588) |
|
Immediately | $ 77.60 | ||||
| NI | 5304480730 | Cover,dispenser |
|
$ 34.02 | |||||
| NI | 242015202 | Namplate,frigidaire ,gallery |
|
- |
