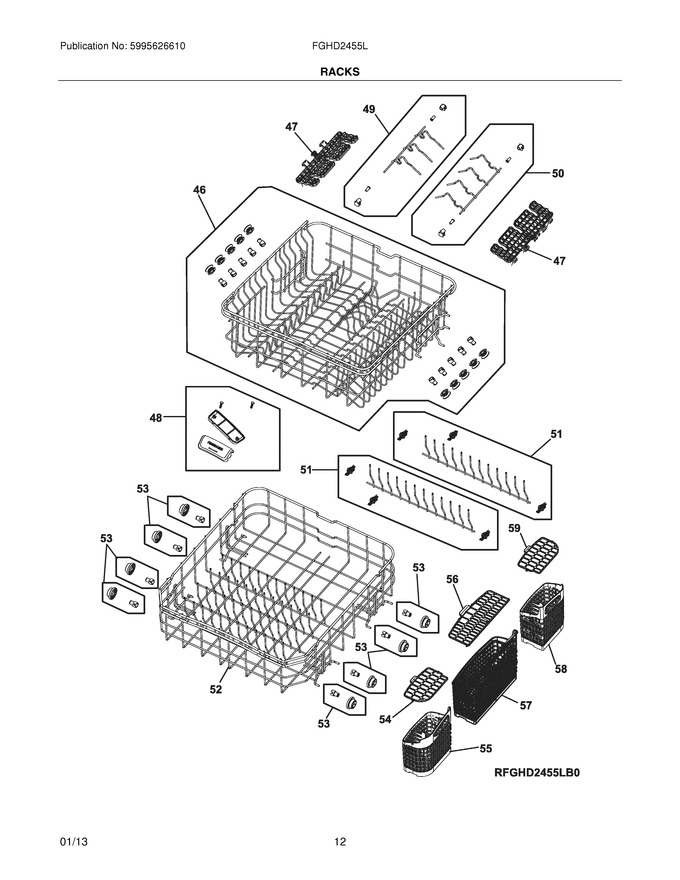

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 46 | 5304480732 | Rack Assembly,upper ,w/rollers |
|
$ 216.51 | |||||
| 47 | 5304480733 | Shelf,cup |
|
$ 33.18 | |||||
| 48 | 5304478325 | Handle Assembly,upper Rack ,w/screws |
|
- | |||||
| 49 | 5304480734 | Fence Assembly,lh ,w/bushings |
|
$ 34.39 | |||||
| 50 | 5304480735 | Fence Assembly,rh ,w/bushings |
|
$ 31.03 | |||||
| 51 | 5304480736 | Fence Assembly,fold Down ,w/brackets |
|
$ 32.18 | |||||
| 52 | 5304518472 | Rack Assembly,lower (Replaces: 5304480737) |
|
Immediately | $ 216.88 | ||||
| 53 | 5304475625 | Wheel Assembly,lower Rack ,(4) (Replaces: 5304480738) |
|
Immediately | $ 17.11 | ||||
| 54 | 5304535382 | Cover,front Basket (Replaces: 5304475627) |
|
Immediately | $ 25.43 | ||||
| 55 | 5304535382 | Basket,silverware ,front (Replaces: 5304475626) |
|
Immediately | $ 25.43 | ||||
| 56 | 5304535382 | Cover,middle Basket (Replaces: 5304475629) |
|
Immediately | $ 25.43 | ||||
| 57 | 5304535382 | Basket,silverware ,middle (Replaces: 5304475628) |
|
Immediately | $ 25.43 | ||||
| 58 | 5304535382 | Basket,silverware ,rear (Replaces: 5304475631) |
|
Immediately | $ 25.43 | ||||
| 59 | 5304535382 | Cover,rear Basket (Replaces: 5304475630) |
|
Immediately | $ 25.43 |
