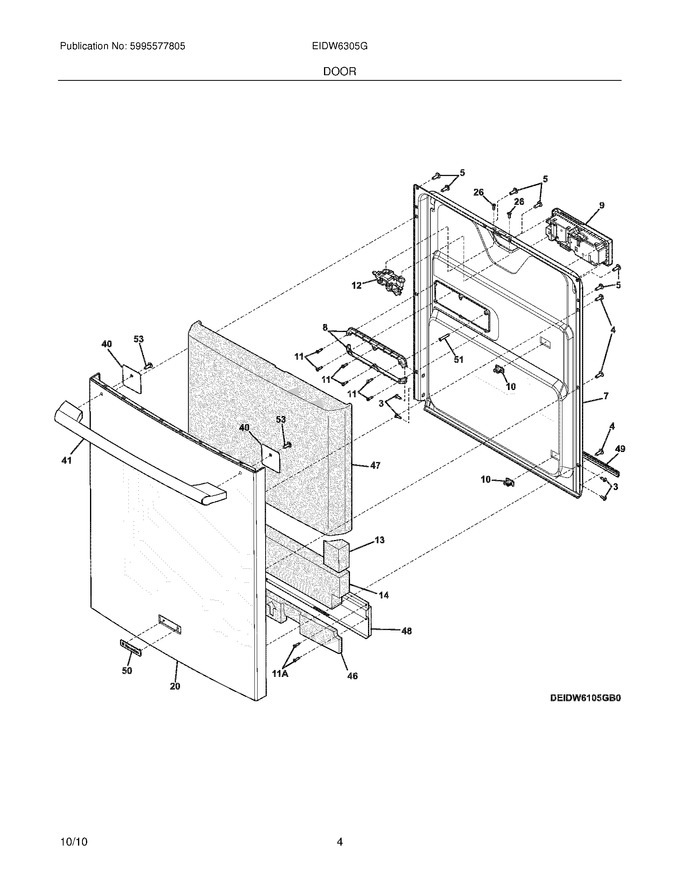

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154518201		Screw,6 Lobe Recess ,no.10-32 ,(4)				$ 7.88
4	154603801		Screw,low Profile ,truss ,(6)				$ 15.75
5	154603701		Screw,ph ,no.10-16 Hi-lo ,(6) ,6 Lobe				$ 9.77
7	154509701		Liner Assembly,door ,inner ,w/mastic		Appelez-nous	-
8	154670901		Bracket,dispenser Mtg. ,(2)				$ 9.29
9	5304507354		Dispenser,det/rinse Aid ,w/reed Switch   (Replaces: 154574405)			Immediately	$ 77.60
10	154633501		Clip,wiring Harness		Appelez-nous	-
11	154625702		Screw,ft Ph 6 Lobe ,no.8-18				$ 7.98
12	154671402		Latch Assembly,door ,w/shield			Immediately	$ 96.88
13	154670701		Foam,door ,sides ,(2)				$ 10.13
14	154623401		Foam,door				$ 31.58
20	154616603		Door,outer ,black				$ 234.57
26	154519101		Screw,phlps Hd ,no.10-16 Hi Lo ,(4)		Appelez-nous	-
40	154603401		Plate,handle Support ,(2)			Immediately	$ 16.30
41	241881319		Handle,door ,black		Appelez-nous	-
46	154690501		Support,door ,bottom		Appelez-nous	-
47	154672002		Moisture Barrier,assembly ,door ,w/data Sheet		Appelez-nous	-
48	154670301		Reinforcement,assembly ,door				$ 47.79
49	154782301		Gasket,door Bottom		Appelez-nous	-
50	154658703		Nameplate,electrolux ,black				$ 23.10
51	154320301		Clamp,drip Loop ,wire				$ 62.69
53	154633601		Screw,handle Mtg. ,(2)				$ 14.89
11A	154518301		Screw,6 Lobe Recess ,no.8-18				$ 8.61
