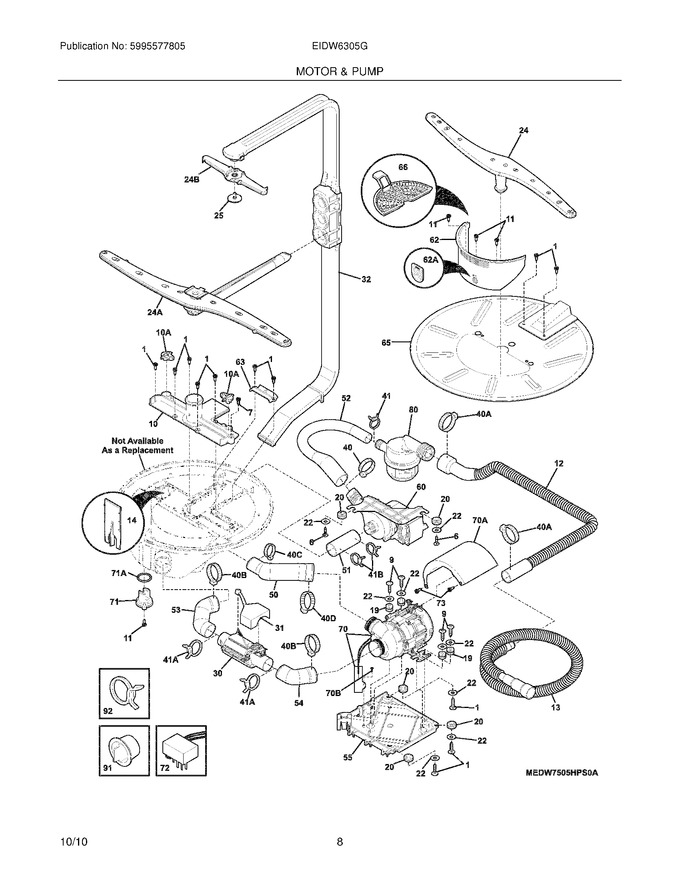

09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154518001		Screw,pan Head ,no.10-16 X .8``				$ 10.54
6	154518301		Screw,6 Lobe Recess ,no.8-18				$ 8.61
7	154673501		Screw,6 Lobe Recess ,no.10 Hi Lo				$ 10.29
9	154625701		Screw,no.8-18 Hi Lo		Appelez-nous	-
10	154763201		Support,lower Spray Arm				$ 60.59
11	5303316032		Screw,truss Ss ,8 .625 ,(7)				$ 10.45
12	154654801		Hose,drain ,intermediate				$ 49.40
13	5304521094		Hose,drain ,main   (Replaces: 154654901)			Immediately	$ 49.28
14	154793601		Bracket,drain				$ 16.54
19	154730301		Grommet,vibration ,(4)		Appelez-nous	-
20	154740001		Grommet,vibration ,(5)				$ 15.44
22	5300809968		Washer				$ 43.38
24	154755501		Spray Arm,assembly ,lower				$ 58.56
25	154650102		Pin,spray Arm ,upper				$ 9.45
31	154622901		Cover,inline Heater		Appelez-nous	-
32	154515602		Tubing Assembly,delivery ,w/check Valve				$ 154.14
40	154692901		Clamp,hose ,1.64`` Open ,worm Gear				$ 6.83
41	154348401		Clamp,hose ,red ,push Spring ,(3)				$ 32.96
50	154760501		Hose,sump To ,motor ,circulation				$ 11.20
51	154757702		Hose,sump To ,drain Pump				$ 12.01
52	154622402		Hose,drain Pump ,to Drain Valve				$ 61.16
53	154653201		Hose,sump To ,inline Heater		Appelez-nous	-
54	154653301		Hose,inline Heater ,to Motor		Appelez-nous	-
55	154677101		Plate,motor Mounting				$ 62.23
62	154600702		Filter Assembly,vertical ,w/flapper				$ 9.40
63	154513501		Cover,delivery Tube				$ 11.66
65	154283005		Filter Assembly,coarse Soil ,w/chimney   (Replaces: 154624901)				$ 253.03
66	154740901		Trap,glass				$ 23.36
73	154518401		Screw,6 Lobe Recess ,no.8-32				$ 10.24
91	154676701		Plug,drain Hose				$ 5.57
92	154348502		Clamp,red ,hose				$ 9.41
10A	154763301		Clamp,filter ,(2)				$ 13.13
24A	154508201		Spray Arm,assembly ,middle ,w/manifold				$ 44.10
24B	154649502		Spray Arm,assembly ,upper				$ 23.63
40A	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 73.71
40B	154693001		Clamp,hose ,1.81`` Open ,(2) ,worm Gear		Appelez-nous	-
40C	154786701		Clamp,spring ,1.312`` ,sae 21				$ 10.44
40D	154786901		Clamp,spring ,1.625`` ,sae 26				$ 13.57
41A	154611101		Clamp,spring ,red ,(2)				$ 12.05
41B	154691501		Clamp,spring ,(2)				$ 8.13
62A	154511601		Flapper,drain Check				$ 19.06
70A	154656401		Shield,motor ,circulation		Appelez-nous	-
70B	154614401		Screw,capacitor Mtg.		Appelez-nous	-
71A	154691901		O-ring,turbidity				$ 42.66
F30	154503701		Heater,inline ,water ,1200w				$ 71.66
F60	154757901		Pump Assembly,drain ,w/bracket				$ 126.86
F70	154614002		Motor & Pump Assy,circulation ,w/capacitor			Immediately	$ 354.23
F71	154473901		Sensor,turbidity				$ 213.26
F72	154655901		Sensor,leak Detector				$ 105.61
F80	154622001		Drain Valve,assembly ,stepper				$ 186.52
FNI	154627001		Harness,wiring ,turbidity		Appelez-nous	-
NI	154819101		Clamp,drain Hose ,to Cabinet				$ 11.50
NI	154657201		Screw,cabinet Clamp ,(2)				$ 9.66
