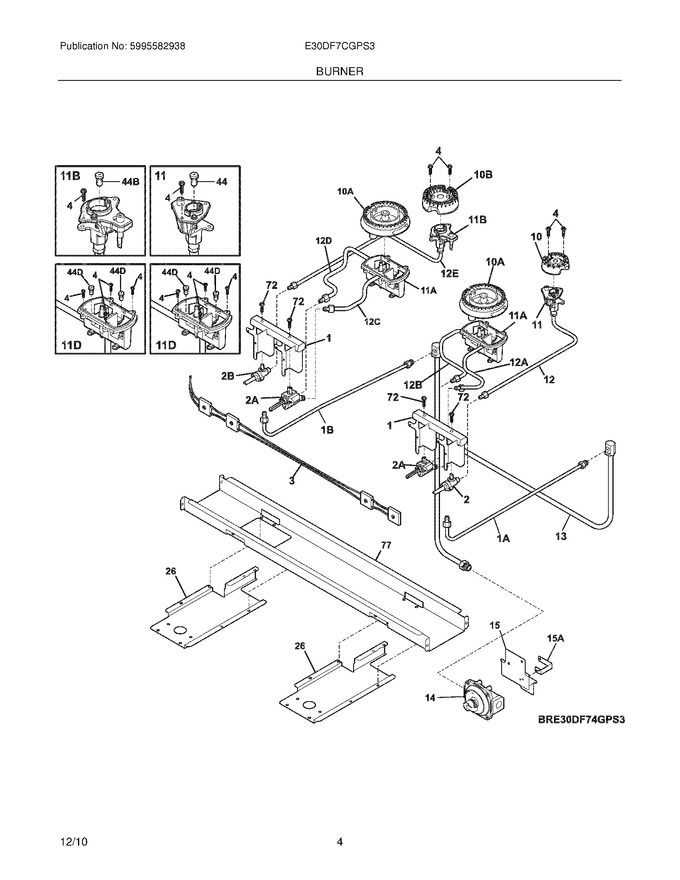

05 - Burner
07 - Body
09 - Main Top
11 - Door
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 15 | 318376102 | Bracket,regulator |
|
- | |||||
| 26 | 318363803 | Bracket,channel Mtg |
|
- | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318355502 | Bracket,channel Mtg. |
|
- | |||||
| 15A | 318376200 | Bracket,regulator ,support |
|
- | |||||
| 1A | 318305403 | Tube,manifold ,interconnect |
|
$ 93.87 | |||||
| 1B | 318305404 | Tube,manifold ,interconnect |
|
$ 70.16 | |||||
| F1 | 318357801 | Manifold,(2) |
|
$ 88.63 | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| F10D | 316525401 | Burner,sealed ,dual ,18k |
|
$ 187.54 | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11B | 316543204 | Ignitor/orifice Assy.,top Burner ,14k |
|
$ 12.33 | |||||
| F11D | 316525103 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
$ 219.39 | |||||
| F12 | 318366727 | Tube,burner ,rh Rear ,5k |
|
- | |||||
| F12A | 318366731 | Tube,18k Burner ,rh Front |
|
$ 29.98 | |||||
| F12B | 318366732 | Tube,18k Burner ,rh Front |
|
$ 29.48 | |||||
| F12C | 318366729 | Tube,18k Burner ,lh Front |
|
$ 28.64 | |||||
| F12D | 318366730 | Tube,18k Burner ,lh Front |
|
$ 29.98 | |||||
| F12E | 318366728 | Tube,14k Burner ,lh Rear |
|
- | |||||
| F13 | 318360601 | Tube,regulator ,to Manifold |
|
$ 157.35 | |||||
| F14 | 318122708 | Regulator,pressure |
|
$ 137.18 | |||||
| F2 | 316520700 | Valve,burner ,5k |
|
$ 126.87 | |||||
| F2A | 316574900 | Valve,top Burner ,18k Dual |
|
$ 242.16 | |||||
| F2B | 316520703 | Valve,burner ,14.2k |
|
$ 146.01 | |||||
| F3 | 318232634 | Wiring Harness,w/igntr Switch |
|
$ 168.66 | |||||
| F44 | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| F44B | 316527511 | Orifice,top Burner ,14k |
|
$ 19.85 | |||||
| F44D | 316523509 | Orifice,top Burner ,center ,18k |
|
$ 20.69 | |||||
| F44D | 316523512 | Orifice,top Burner ,18k |
|
- | |||||
| FNI | 318199778 | Wiring Harness,ignitor |
|
$ 91.20 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8 (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 318186925 | Lp Conversion Kit |
|
$ 192.20 | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- |
