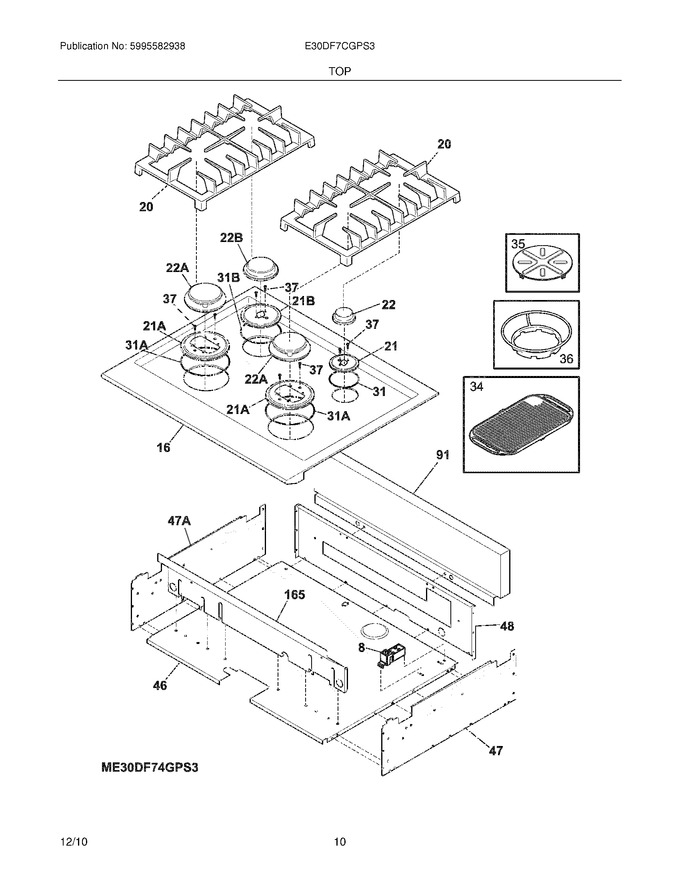

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318185233		Main Top Assy,frame/glass ,stainless/black				$ 924.21
20	318361405		Grate,top Burner ,black ,(2) ,double				$ 282.15
21	318293107		Skirt,5k Burner ,black				$ 60.67
22	316548600		Cap,burner ,5k ,black				$ 87.70
31	316242002		Seal,5k/9.5k Burner				$ 25.02
34	318251600		Griddle				$ 240.03
35	318254200		Simmer Plate				$ 67.83
36	318254300		Support,wok				$ 259.41
37	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
46	318242910		Panel,bottom		Appelez-nous	-
47	318241706		Panel,side ,rh		Appelez-nous	-
48	318241813		Panel,rear		Appelez-nous	-
91	318353011		Backsplash,stainless				$ 288.83
165	318355102		Deflector,heat		Appelez-nous	-
21A	316515100		Skirt,18k Burner ,black ,(2)				$ 63.47
21B	318293308		Skirt,14k Burner ,black			Immediately	$ 70.52
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
31A	316515203		Seal,18k Burner ,(2)				$ 70.31
31B	316242000		Seal,12k/14k Burner				$ 73.71
47A	318241707		Panel,side ,lh		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	318165800		Spacer				$ 17.72
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
