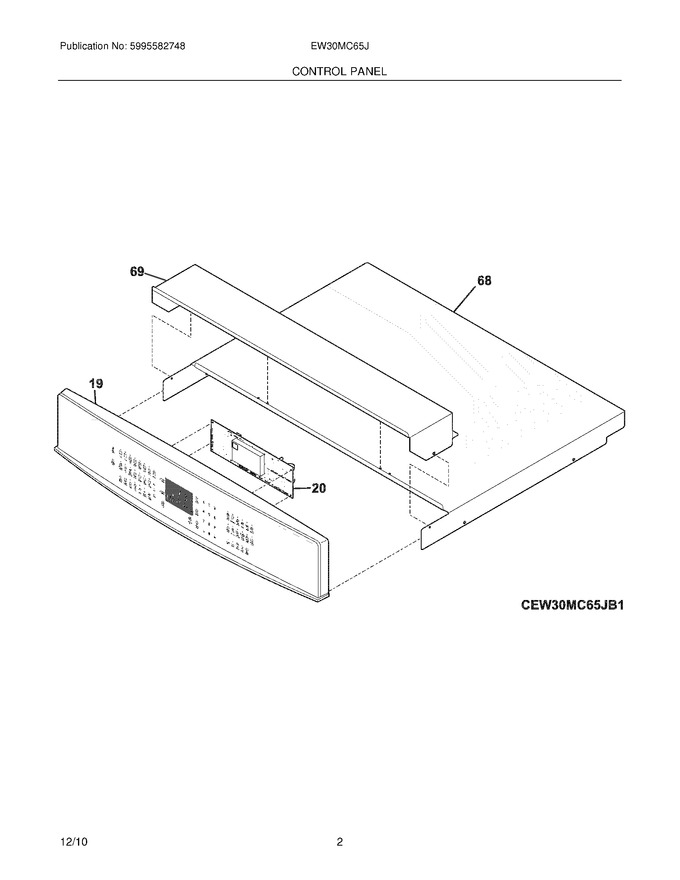

03 - Control Panel
05 - Microwave
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | 318237222 | Housing,top/control |
|
- | |||||
| 69 | 318237323 | Shield,control |
|
- | |||||
| F19 | 318280463 | Control Panel Assy.,glass ,white ,w/membrane |
|
- | |||||
| F20 | 316570410 | Board,control ,uib ,microcombi |
|
Immediately | $ 758.35 | ||||
| FNI | 318532194 | Harness,wiring ,display/control |
|
$ 115.58 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 |
