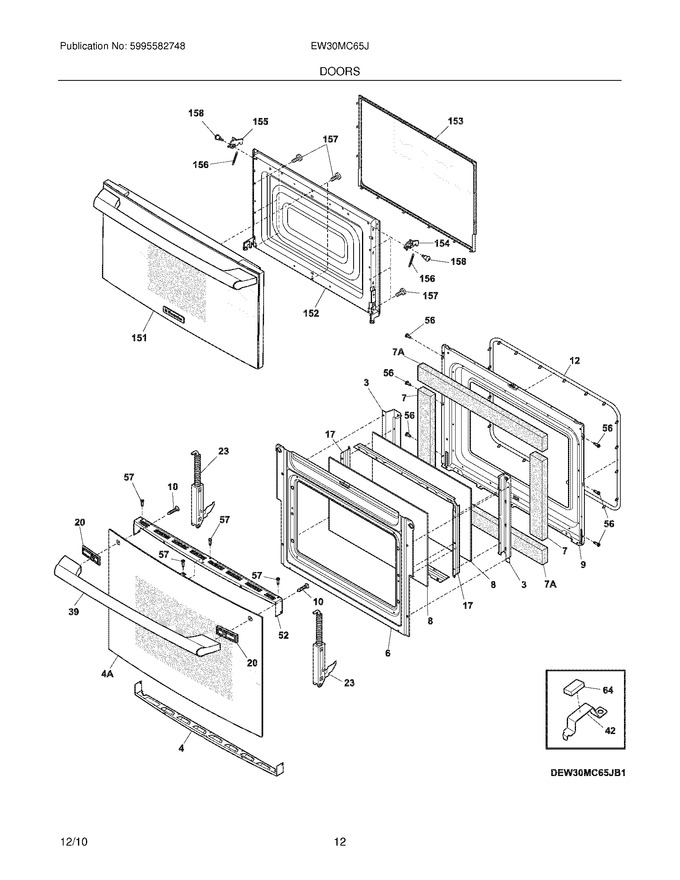

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318904905		Trim,door ,lower				$ 40.06
6	318904200		Deflector,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318904005		Liner,door		Appelez-nous	-
10	5303323139		Screw,10-24 X 0.906				$ 13.46
12	318053132		Gasket,oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
17	318264733		Spacer,glass ,(2)   (Replaces: 318264711)				$ 72.05
20	318902900		Spacer,handle ,white ,(2)				$ 18.46
23	318900600		Hinge,oven Door				$ 195.35
39	241881314		Handle,door ,white				$ 178.09
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318904701		Trim,door ,black ,upper				$ 73.76
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
57	5304462581		Screw,8-32 X 5/16				$ 11.34
64	5304455945		Spacer,pad		Appelez-nous	-
151	5304481744		Door Assembly,complete ,white ,microwave,w/nameplate		Appelez-nous	-
152	5304470578		Panel,inner Door				$ 351.54
153	5304470579		Frame,inner Door ,choke Cover				$ 87.48
154	5304491054		Latch Head,right Side   (Replaces: 5304470580)				$ 54.58
155	5304490142		Latch Head,left Side   (Replaces: 5304470581)			Immediately	$ 58.56
156	5304470582		Spring,latch Head				$ 5.79
157	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
158	5304470583		Screw				$ 13.01
4A	318549104		Door Assembly,outer ,white ,w/subframe		Appelez-nous	-
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
