SELECT A DIAGRAM

01 - Cover


03 - Control Panel

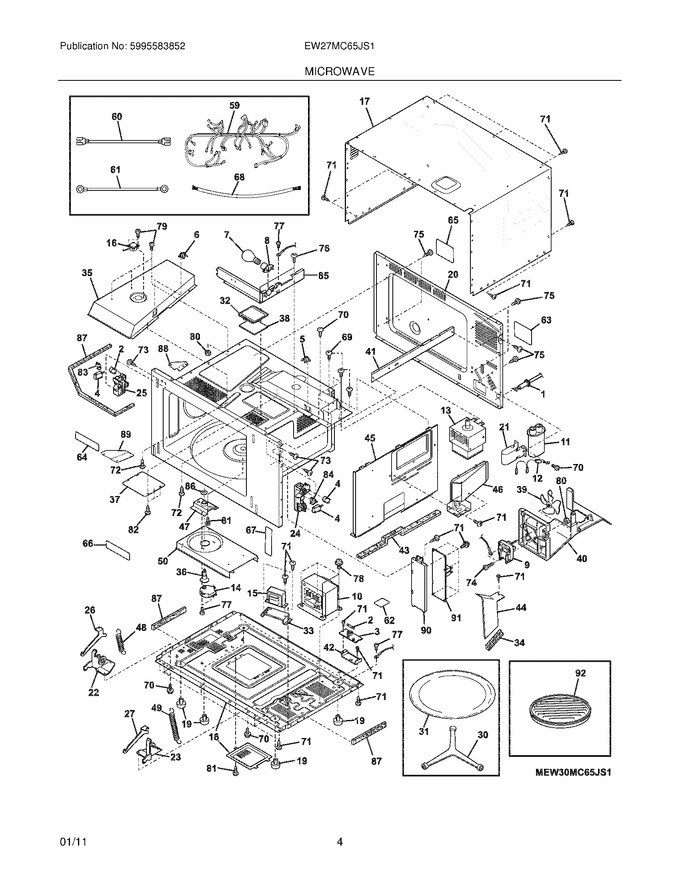

05 - Microwave


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304464198		Lamp,oven Light			Immediately	$ 39.04
17	5304470542		Cabinet,outer Casing				$ 245.24
18	5304470734		Base,chassis ,w/motor Cover		Appelez-nous	-
19	5304461127		Foot,cabinet ,(4)				$ 15.54
20	5304470544		Panel,cabinet Back		Appelez-nous	-
21	5304461129		Holder,capacitor		Appelez-nous	-
22	5304470545		Hinge,oven Door ,left				$ 180.73
23	5304470546		Hinge,oven Door ,right				$ 175.68
24	5304470547		Latch Hook,right Side			Immediately	$ 51.32
25	5304470548		Latch Hook,left Side			Immediately	$ 51.03
26	5304470549		Cam,door ,left				$ 86.42
27	5304470550		Cam,door ,right			Immediately	$ 91.58
30	5304480642		Support,turntable				$ 143.96
31	5304470563		Tray,turntable ,glass				$ 238.86
32	5304461155		Frame,light Lens		Appelez-nous	-
33	5304470564		Bracket,mounting ,transformer		Appelez-nous	-
34	5304461157		Cushion		Appelez-nous	-
35	5304461158		Duct Assembly,steam Release		Appelez-nous	-
36	5304480644		Coupling,turntable				$ 138.80
37	5304461165		Cover,waveguide				$ 232.99
38	5304461167		Lens,light		Appelez-nous	-
40	5304461174		Duct,cooling Fan		Appelez-nous	-
41	5304461175		Support,chassis		Appelez-nous	-
42	5304461178		Bracket,noise Filter ,angle		Appelez-nous	-
43	5304461156		Cushion		Appelez-nous	-
44	5304461181		Guide,air ,magnetron		Appelez-nous	-
45	5304461183		Cover,thermal Sheet ,panel		Appelez-nous	-
46	5304461162		Duct,damper		Appelez-nous	-
47	5304451459		Bracket,turntable Mount		Appelez-nous	-
48	5304470574		Spring,door ,right Side				$ 77.26
49	5304470575		Spring,door ,left Side				$ 226.99
50	5304470576		Insulator,thermal Barrier		Appelez-nous	-
62	5304440334		Label,caution-monitor		Appelez-nous	-
63	5304465314		Label,nhw Caution		Appelez-nous	-
64	5304451534		Label,user Caution ,french				$ 3.55
65	5304440333		Label,caution-dhhs		Appelez-nous	-
66	5304481746		Label,turntable/tray ,placement		Appelez-nous	-
67	5304470586		Label,menu		Appelez-nous	-
69	5303319636		Screw		Appelez-nous	-
70	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
71	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
72	5304461203		Screw,4mm X 10mm ,(6)		Appelez-nous	-
73	5303319641		Screw				$ 12.76
74	5304461209		Screw,4mm X 25mm ,(2)		Appelez-nous	-
75	5304470587		Screw		Appelez-nous	-
76	5304461215		Screw,4mm X 8mm ,(2)		Appelez-nous	-
77	5304470588		Screw				$ 9.93
78	5304461221		Screw,6mm X 14mm ,(4)		Appelez-nous	-
79	5304470589		Screw		Appelez-nous	-
80	5304470590		Nut,special		Appelez-nous	-
81	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
82	5304461210		Screw,4mm X 6mm ,(3)		Appelez-nous	-
83	5304470591		Lever,switch Actuator ,left				$ 55.67
84	5304470592		Lever,switch Actuator ,right				$ 46.61
85	5304480654		Guide,air ,rh		Appelez-nous	-
86	5304451470		Packing,silicon				$ 52.05
87	5304482055		Cushion,side		Appelez-nous	-
88	5304480657		Angle,cavity Support ,upper		Appelez-nous	-
89	5304480658		Angle,cavity Support		Appelez-nous	-
90	5304470735		Holder,power Board				$ 46.78
92	5304461261		Rack,bacon				$ 180.03
F1	5304470537		Power Cord,electric				$ 117.12
F10	5304470538		Transformer,power				$ 368.55
F11	5304470539		Capacitor,high Voltage				$ 145.76
F12	5304474696		Rectifier Assembly,high Voltage   (Replaces: 5304481742)				$ 120.49
F13	5304480636		Magnetron				$ 521.26
F14	5304498736		Motor,turntable   (Replaces: 5304461124)				$ 104.62
F15	5304470541		Transformer,low Voltage				$ 225.14
F16	5304461125		Sensor Assembly,ah				$ 150.26
F2	5304451397		Switch/fuse Assy,monitor				$ 152.72
F3	5304498734		Filter,noise   (Replaces: 5304461110)			Immediately	$ 51.74
F39	5304461173		Blade,fan				$ 44.65
F4	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F5	5304461113		Thermal Cut-out,magnetron				$ 47.48
F59	5304470584		Wiring Harness,main		Appelez-nous	-
F6	5304461114		Thermal Cut-out,convection/oven ,(2)				$ 181.73
F60	5304461198		Wire,high Voltage ,b		Appelez-nous	-
F61	5304461199		Wire,ground ,cooling Fan				$ 25.52
F68	5304480653		Harness,wiring ,psu ,to Cpu				$ 158.05
F8	5304463785		Lampholder,socket				$ 43.24
F9	5304461119		Motor,fan				$ 429.36
F91	5304481749		Board,power				$ 271.82

    View Diagram in Separate Window       Print Part List
