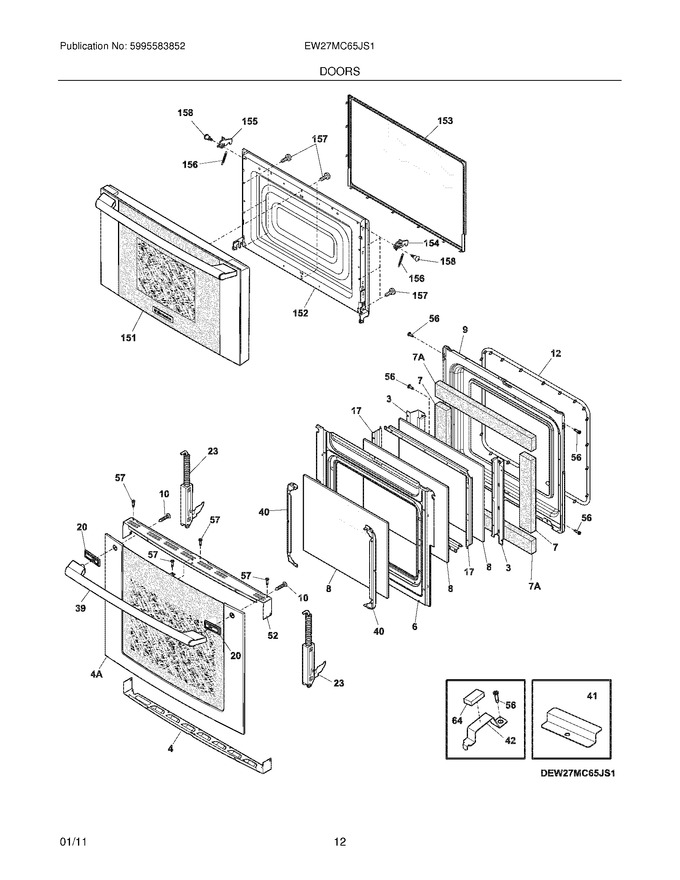

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318901803		Trim,door ,black ,bottom		Appelez-nous	-
6	318901000		Deflector,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318900805		Liner,oven Door		Appelez-nous	-
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053136		Gasket,oven Door Seal				$ 124.16
17	318264701		Spacer,glass ,(2)		Appelez-nous	-
20	318902902		Spacer,handle ,grey ,(2)				$ 53.76
23	318900600		Hinge,oven Door				$ 195.35
39	241881303		Handle,door ,stainless		Appelez-nous	-
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318901601		Trim,door ,black ,upper		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
57	5304462581		Screw,8-32 X 5/16				$ 11.34
64	5304455945		Spacer,pad		Appelez-nous	-
151	5304482056		Door Assembly,complete ,stainless/black		Appelez-nous	-
152	5304470578		Panel,inner Door				$ 351.54
153	5304470579		Frame,inner Door ,choke Cover				$ 87.48
154	5304491054		Latch Head,right Side   (Replaces: 5304470580)				$ 54.58
155	5304490142		Latch Head,left Side   (Replaces: 5304470581)			Immediately	$ 58.56
156	5304470582		Spring,latch Head				$ 5.79
157	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
158	5304470583		Screw				$ 13.01
4A	318261380		Glass Assy.,lower Door ,black/stainless		Appelez-nous	-
7A	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
