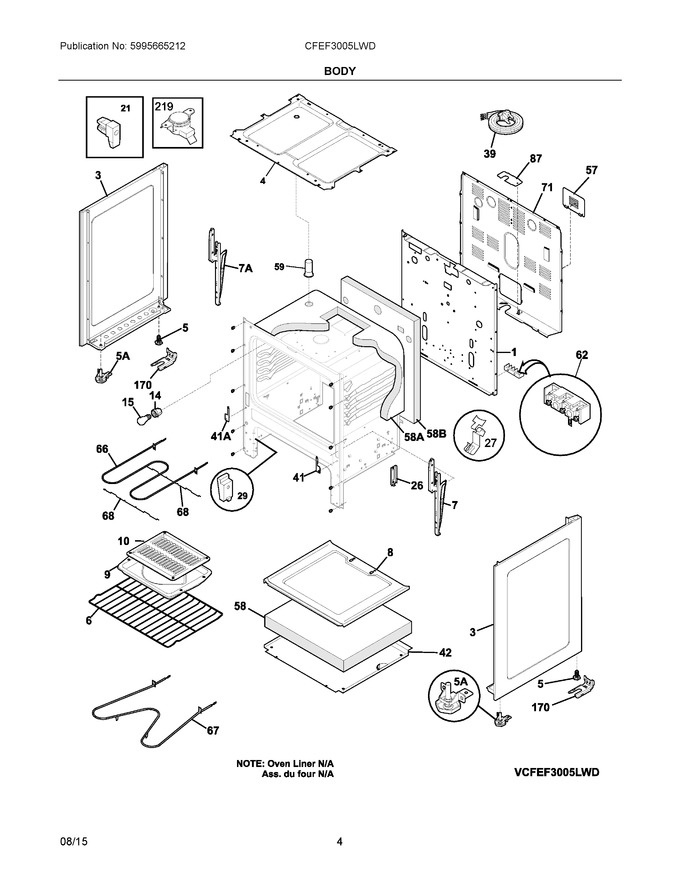

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back, Main		Appelez-nous	-
3	316400142		Panel, Bodyside, White, Rh   (Replaces: 316400116)				$ 140.85
4	5304522901		Burner Box   (Replaces: 316201408)				$ 85.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316067902		Rack, Oven, (2)			Immediately	$ 103.10
7	316566210		Hinge, Oven Door, Rh				$ 63.51
8	316495903		Panel,, Oven Bottom				$ 108.68
9	316081900		Pan, Broiler Optional Accessory				$ 65.89
10	316082000		Insert, Broiler Pan Optional Accessory				$ 68.85
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
21	316408000		Clip, Bodyside				$ 18.20
26	316206300		Support, Chassis, (2)				$ 19.72
27	5303284616		Clip, Thermo Bulb Mtg				$ 9.86
29	807047102		Glide, Drawer, Front   (Replaces: 316407301)			Immediately	$ 23.82
39	318113111		Cord, Electric				$ 95.55
41	316233400		Cover, Hinge Cutout, Rh				$ 67.99
42	316547400		Shield, Wool, Lower				$ 87.18
57	316283600		Cover, Access				$ 12.50
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073605		Tube, Oven Vent				$ 80.80
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316203200		Element, Broil			Immediately	$ 164.45
67	316075103		Element, Bake   (Replaces: 316075104)			Immediately	$ 42.36
68	316203400		Support, Broil Element				$ 70.88
71	316283204		Shield, Rear Wall   (Replaces: 316283200)				$ 56.12
87	316081202		Bracket, Cable Mtg				$ 4.96
170	316112005		Anti Tip Kit, Assembly   (Replaces: 316112004)			Immediately	$ 18.91
219	318003602		Thermostat, Safety				$ 110.09
3A	316400143		Panel, Bodyside, White, Lh   (Replaces: 316400117)				$ 140.85
41A	316233500		Cover, Hinge Cutout, Lh				$ 16.96
58A	316047707		Insulation, 1", Oven Wrapper				$ 150.92
58B	316054202		Insulation, 1", Oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
7A	316566211		Hinge, Oven Door, Lh				$ 70.56
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	3131737		Washer, Black				$ 5.59
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303289910		Screw, 8a, 1				$ 5.67
NI	316581300		Retainer, Wire				$ 4.26
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316580010		Harness, Wiring, Main				$ 102.80
NI	316210800		Plug, Button				$ 10.63
NI	316246400		Plug, Button, Oven Probe		Appelez-nous	-
NI	316256200		Plug, Button, Oven Button		Appelez-nous	-
NI	316444100		Plate-weight, (3)		Appelez-nous	-
NIA	316248900		Spacer, Shield, Rear Wall		Appelez-nous	-
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
