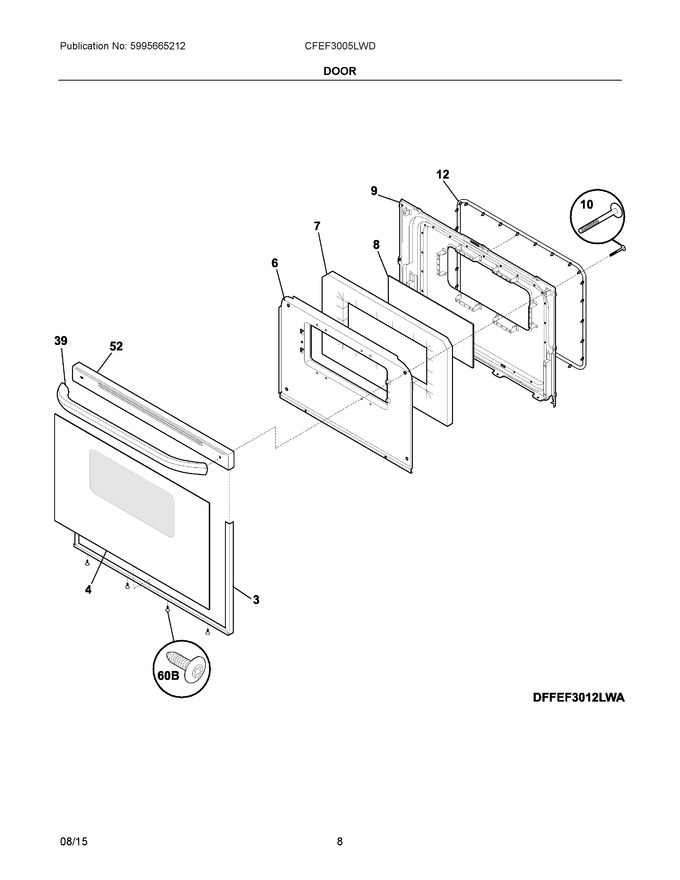

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935347		Trim Kit-door, 3 Sided, White, W/tape				$ 62.90
4	316202803		Glass, Oven Door, White, Outer   (Replaces: 316202823)				$ 352.64
6	316222703		Shield, Oven Door, Wool   (Replaces: 316222709)				$ 78.67
7	316236802		Insulation, Oven Door				$ 41.63
8	316088600		Glass, Oven Door, Inner				$ 85.52
9	316230628		Liner, Oven Door				$ 128.90
10	316278700		Screw, Wafer Head, 10-14 X 1 3/8, Handle Mtg			Immediately	$ 27.50
12	316239700		Seal, Oven Door			Immediately	$ 152.43
39	316545301		Handle, Door/drawer, White			Immediately	$ 130.85
52	316491200		Cap, Door Trim, White			Immediately	$ 119.83
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433602		Label, Anti-tip		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
