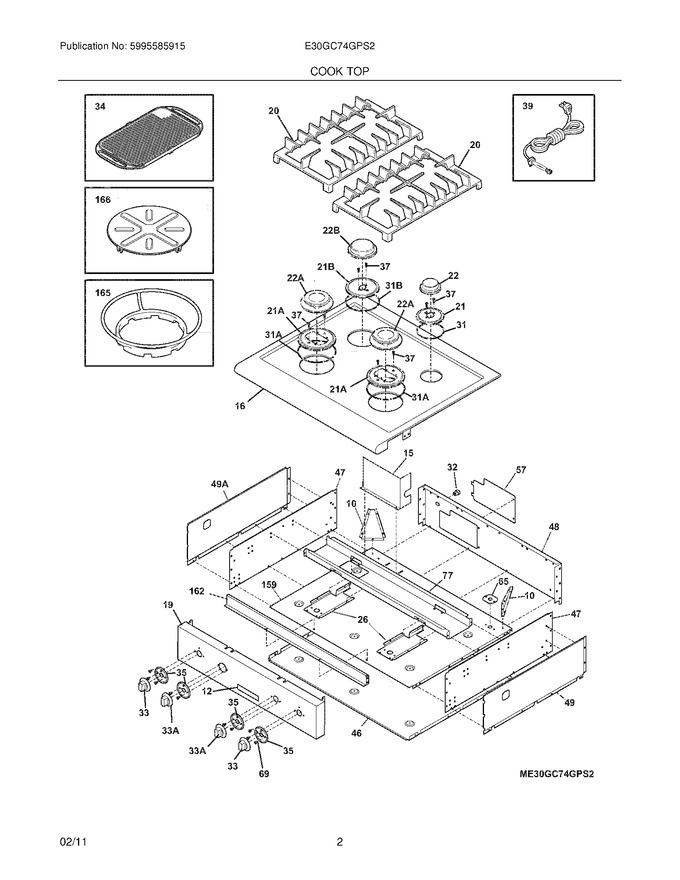

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	318392500		Bracket,box ,(2)		Appelez-nous	-
12	241603101		Label,nameplate ,elux/icon				$ 80.96
15	318024206		Deflector,spark Module		Appelez-nous	-
16	318185237		Main Top Assy,frame/glass ,stainless/black		Appelez-nous	-
19	318285747		Panel,control ,stainless		Appelez-nous	-
20	318361405		Grate,top Burner ,black ,(2) ,double				$ 282.15
21	318293107		Skirt,5k Burner ,black				$ 60.67
22	316548600		Cap,burner ,5k ,black				$ 87.70
26	318363803		Bracket,channel Mtg		Appelez-nous	-
31	316242002		Seal,5k/9.5k Burner				$ 25.02
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
33	318242225		Knob,control ,stainless ,(4)				$ 223.28
34	318251600		Griddle				$ 240.03
35	318251911		Skirt,(4)				$ 73.56
37	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
39	318144006		Cord,service		Appelez-nous	-
46	318242810		Panel,base		Appelez-nous	-
47	318241712		Panel,side ,(2)		Appelez-nous	-
48	318241820		Panel,rear		Appelez-nous	-
49	318241904		Panel,interior Side ,rh		Appelez-nous	-
57	318286400		Panel,service		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
69	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
77	318355502		Bracket,channel Mtg.		Appelez-nous	-
159	318242920		Panel,bottom		Appelez-nous	-
162	318245612		Brace,manifold		Appelez-nous	-
165	318254300		Support,wok				$ 259.41
166	318254200		Simmer Plate				$ 67.83
21A	316515100		Skirt,18k Burner ,black ,(2)				$ 63.47
21B	318293308		Skirt,14k Burner ,black			Immediately	$ 70.52
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
31A	316515203		Seal,18k Burner ,(2)				$ 70.31
31B	316242000		Seal,12k/14k Burner				$ 73.71
33A	318242226		Knob,control ,stainless ,dual ,(2)				$ 216.55
49A	318241905		Panel,interior Side ,lh		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
