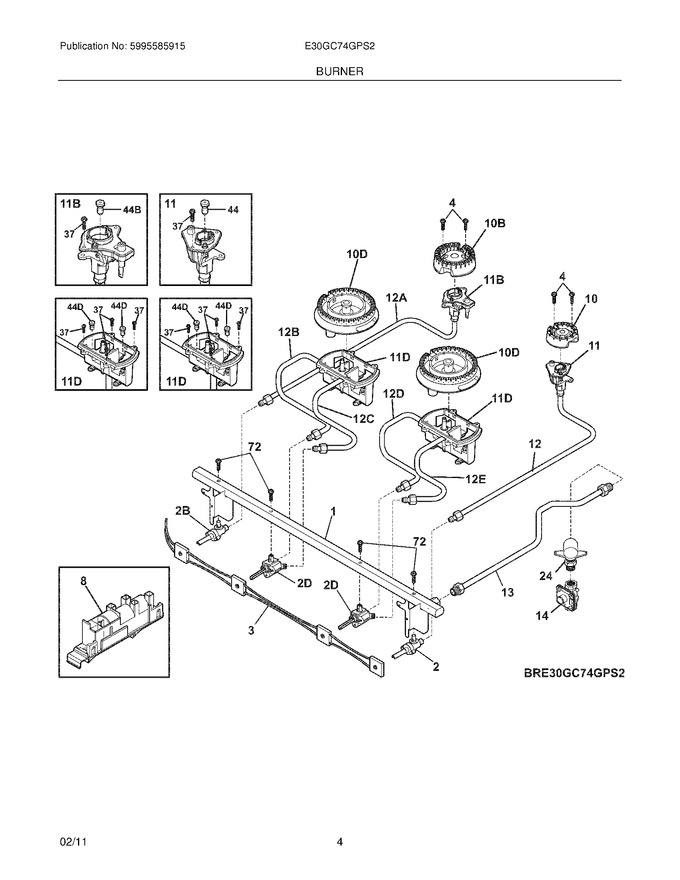

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
13	318054513		Connector,manifold Tube				$ 51.50
24	318054010		Elbow,fitting				$ 172.23
37	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
F1	318234315		Manifold Pipe		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11D	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F12	318221375		Tubing,5k ,rh Rear		Appelez-nous	-
F12A	318221376		Tubing,14k ,lh Rear		Appelez-nous	-
F12B	318221377		Tubing,18k ,lh Front		Appelez-nous	-
F12C	318221379		Tubing,18k ,lh Front		Appelez-nous	-
F12D	318221378		Tubing,18k ,rh Front		Appelez-nous	-
F12E	318221380		Tubing,18k ,rh Front		Appelez-nous	-
F14	318122706		Regulator,pressure				$ 114.83
F2	316520700		Valve,burner ,5k				$ 126.87
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2D	316574900		Valve,top Burner ,18k Dual				$ 242.16
F3	318232637		Wiring Harness,w/igntr Switch				$ 90.51
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44D	316523512		Orifice,top Burner ,18k		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
FNI	318199778		Wiring Harness,ignitor				$ 91.20
FNI	318127448		Lp Conversion Kit		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303321221		Screw,8-32 X 3/4		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
