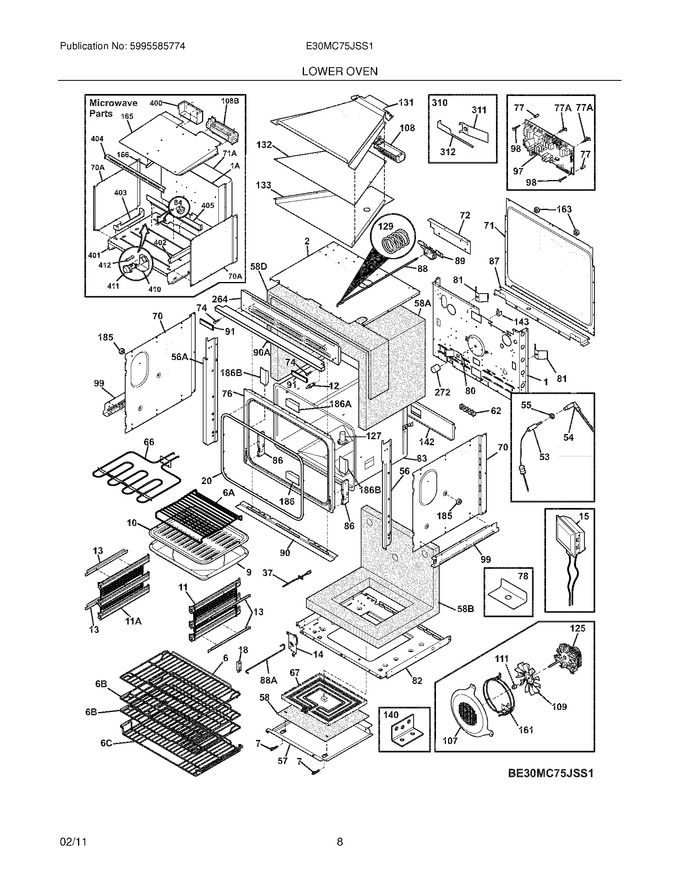

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318376700		Shield,oven Top		Appelez-nous	-
6	318240104		Shelf,oven ,fixed				$ 155.61
7	318368300		Pin,locking ,(2)				$ 9.93
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240014		Glide & Support Assy,oven Shelves ,rh				$ 440.48
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
18	318562300		Bracket,rod				$ 16.87
20	318239001		Gasket,oven Door				$ 112.41
55	316247700		Nut,mounting				$ 18.20
56	318236536		Trim,side ,black ,rh		Appelez-nous	-
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318376800		Panel,rear Box		Appelez-nous	-
72	318377100		Cover,main Back		Appelez-nous	-
74	316517600		Spacer,oven Door				$ 12.05
76	318056241		Front,oven				$ 166.53
77	318293702		Spacer,control				$ 16.22
78	318243601		Bracket,stopping				$ 5.40
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318386001		Liner,oven Assy		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
88	318250203		Rod,latch ,w/bushing				$ 59.33
90	318370403		Bracket,gutter ,black				$ 179.74
91	318905130		End Cap,middle Trim ,stainless ,(2)		Appelez-nous	-
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357003		Adapter Assembly,w/vent Tube ,and Catalyst				$ 35.02
129	5303311164		Spring				$ 18.95
131	318376912		Channel,air ,upper		Appelez-nous	-
132	318237603		Divider,air Channel		Appelez-nous	-
133	318237503		Channel,air ,lower   (Replaces: 318237501)		Appelez-nous	-
140	318399310		Bracket,holding		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
165	318381741		Shield,heat ,base		Appelez-nous	-
166	318577001		Deflector,divider		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
186	318236901		Bracket,oven ,lower		Appelez-nous	-
264	318278521		Trim,vent		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
310	5304435864		Kit,cabinet Mtg ,w/instructions				$ 117.60
311	318246000		Bracket,cabinet ,anti-tip		Appelez-nous	-
312	318246703		Tool,oven Release ,lh Key				$ 12.13
312	318246702		Tool,oven Release ,rh Key				$ 12.13
400	318576901		Box,cooling Duct		Appelez-nous	-
401	318297220		Plate,support ,microwave ,30``		Appelez-nous	-
402	318406708		Bracket,attachment		Appelez-nous	-
403	318407609		Bracket,attachment		Appelez-nous	-
404	318410513		Trim,vent ,black		Appelez-nous	-
405	318935101		Panel,back Filler		Appelez-nous	-
410	318933901		Bracket,fuse		Appelez-nous	-
11A	318240015		Glide & Support Assy,oven Shelves ,lh				$ 400.15
1A	318259271		Back,main ,upper Oven		Appelez-nous	-
56A	318236537		Trim,side ,black ,lh		Appelez-nous	-
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318362100		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	318362124		Insulation,26 X 9.5 X .5		Appelez-nous	-
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318345405		Shelf,oven ,extendable ,(2)				$ 177.66
6C	318345406		Shelf,oven ,extendable				$ 151.03
70A	318259120		Shield,insulation ,sides ,(2)		Appelez-nous	-
71A	318260020		Panel,rear Box		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
88A	318376505		Rod,latch				$ 13.72
90A	318934711		Trim,black		Appelez-nous	-
F108	318073019		Motor,blower				$ 518.13
F108	318073038		Motor,blower				$ 256.57
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F161	318255512		Element,convection ,1600 W				$ 148.89
F186	318237101		Bracket,oven ,side ,(2)		Appelez-nous	-
F186	318237001		Bracket,oven ,upper		Appelez-nous	-
F311	5304438005		· Screw,6 X 1 ,black				$ 9.93
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F411	318647300		Holder,fuse   (Replaces: 318576200)			Immediately	$ 217.73
F412	318647300		Fuse,20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe			Immediately	$ 171.52
F66	318255806		Element,broil ,4000w				$ 282.09
F67	318601604		Element,hidden Bake ,upper Oven   (Replaces: 318601601)			Immediately	$ 260.38
F84	5304517286		Outlet,electrical ,miniature ,black   (Replaces: 318146843)				$ 91.01
F89	318095965		Motor,latch Assy ,w/brkt & Switch				$ 152.64
F97	316570520		Board,relay		Appelez-nous	-
FNI	318572708		Harness,wiring ,latch		Appelez-nous	-
FNI	318572760		Thermostat Assembly,safety ,w/wires				$ 91.14
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318572706		Harness,wiring ,main		Appelez-nous	-
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	318373001		Bracket,receptacle ,temp Probe				$ 9.87
NI	5303316982		Foam Seal,(2)		Appelez-nous	-
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	318167300		Clip,rod				$ 2.84
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316247800		Washer,lock ,mtg				$ 18.20
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
