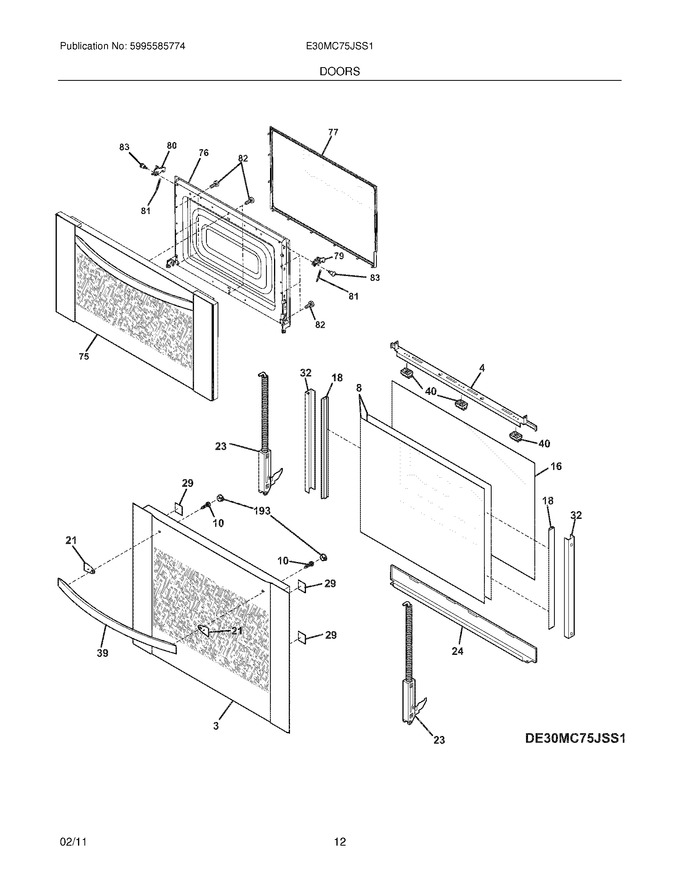

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318235915		Door Front Assembly,w/glass ,stainless ,w/frame		Appelez-nous	-
4	318238314		Holder,glass ,top				$ 186.06
8	318238020		Glass,door ,middle ,(2)				$ 208.16
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
16	318237926		Glass,oven Interior				$ 723.58
18	318377501		Seal,middle Glass ,(2)				$ 98.91
21	318369410		Spacer,handle				$ 10.33
23	318244304		Hinge Assy,(2)				$ 285.90
24	318390401		Trim,door ,black ,lower				$ 203.60
29	5304436441		Bumper,base ,(4)				$ 7.25
32	318382601		Deflector,middle Glass ,(2)				$ 54.02
39	318238904		Handle,oven Door ,stainless				$ 158.76
40	318377400		Bracket,glass Holder				$ 48.53
75	5304471510		Door,outer ,designer Handle				$ 704.22
76	5304471512		Panel,inner Door				$ 357.92
77	5304470579		Frame,inner Door ,choke Cover				$ 87.48
79	5304491054		Latch Head,right Side   (Replaces: 5304470580)				$ 54.58
80	5304490142		Latch Head,left Side   (Replaces: 5304470581)			Immediately	$ 58.56
81	5304470582		Spring,latch Head				$ 5.79
82	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
83	5304470583		Screw				$ 13.01
193	316210800		Plug,button				$ 10.63
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304443263		Screw,6-20 X 3/8 ,black				$ 10.92
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93
