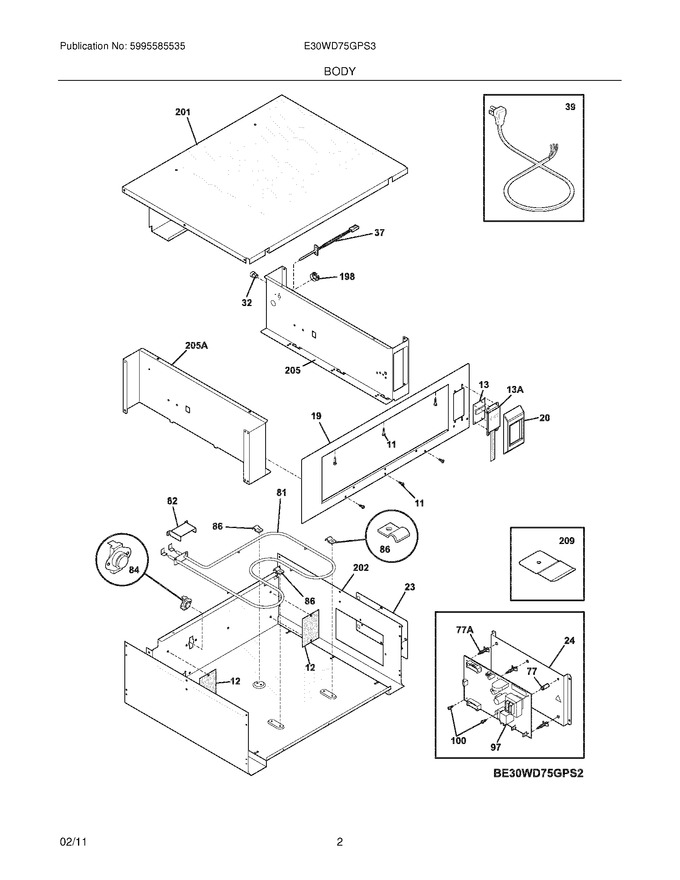

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
12	318388000		Bumper,absorber ,felt ,(2)		Appelez-nous	-
19	318246913		Panel,control ,stainless		Appelez-nous	-
20	318390200		Box,display				$ 85.39
23	318310109		Panel,service		Appelez-nous	-
24	318310701		Bracket,mounting				$ 80.80
32	318228100		Strain Relief				$ 3.36
39	318144005		Cord,service				$ 23.99
77	318293702		Spacer,control				$ 16.22
82	318388600		Guard,element		Appelez-nous	-
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
100	5304400427		Screw,6-20 X 1/2 ,(2)		Appelez-nous	-
198	08008009		Bushing,nylon ,snap		Appelez-nous	-
201	318281508		Wrapper,upper		Appelez-nous	-
202	318281021		Wrapper,lower		Appelez-nous	-
205	318281215		Panel,side ,black ,rh		Appelez-nous	-
209	318247402		Bracket,wall				$ 25.52
77A	316114100		Spacer				$ 60.96
F13	316517900		Board,display				$ 264.83
F13A	318388111		Bracket Assembly,display Board ,w/overlay				$ 2,303.32
F205	318281315		Panel,side ,black ,lh		Appelez-nous	-
F209	5304464952		Screw,no.10-16 X 1 1/4 ,(5)		Appelez-nous	-
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005114		Thermostat				$ 46.10
F97	316517800		Board,control ,display Realy				$ 252.17
FNI	318199788		Wiring Harness,main		Appelez-nous	-
FNI	318199765		Wiring Harness,communication		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	318399000		Shield,wire		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304467464		Screw,8-18 X 5/16 ,(6) ,box Mtg.		Appelez-nous	-
NI	318531900		Clip,(3)		Appelez-nous	-
NI	5304464950		Screw,no.6 - 32 X 5/16 ,(4)		Appelez-nous	-
NI	318388001		Plate,anti Friction ,felt		Appelez-nous	-
