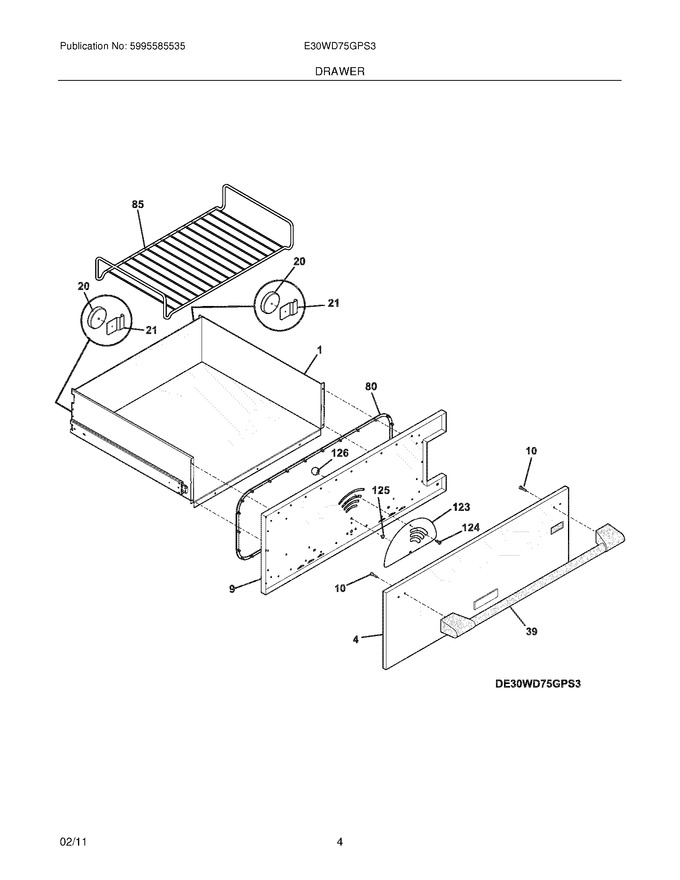

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318246421		Drawer,warmer ,w/track				$ 688.64
4	318284024		Panel,drawer Front ,stainless ,w/nameplate				$ 448.09
9	318247203		Panel,drawer ,interior				$ 346.03
10	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 8.34
20	318373201		Magnet,drawer ,(2)				$ 5.99
21	318378009		Bracket,magnet Mtg ,(2)				$ 18.46
39	318392423		Handle,door				$ 316.10
80	318254407		Gasket,warmer Drawer				$ 96.81
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
123	318247104		Panel,control ,humidity		Appelez-nous	-
124	5304443138		Screw,10-24 X 3/8		Appelez-nous	-
125	5304436030		Rivet		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
NI	5304437021		Screw,mounting ,8-18 X 0.25 ,chrome ,(7)		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
