SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram

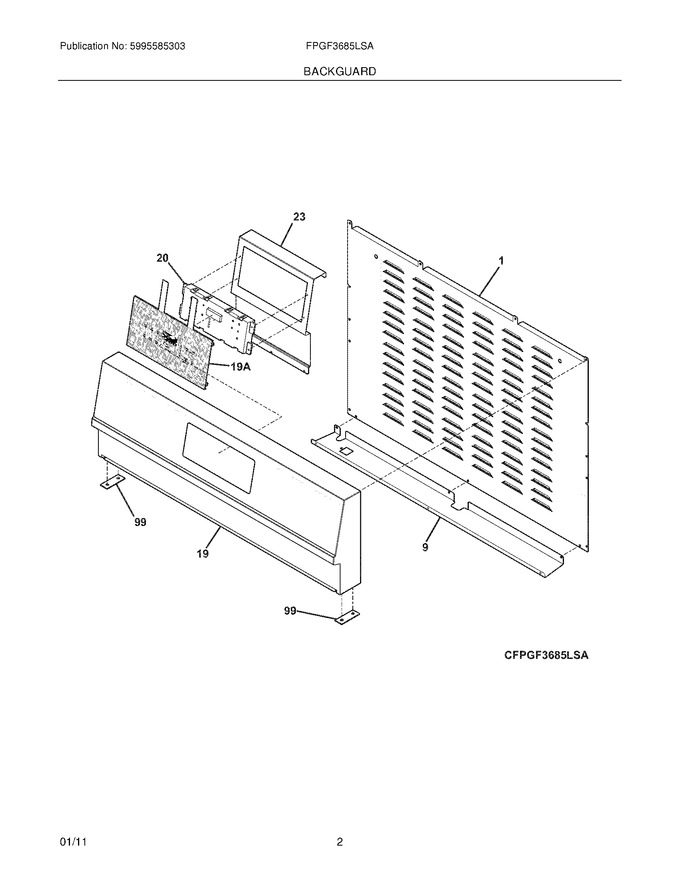

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318316311		Cover,rear ,upper		Appelez-nous	-
9	318339100		Bracket,mounting ,service Cord		Appelez-nous	-
19	318315002		Panel,control ,stainless		Appelez-nous	-
23	318316202		Bracket,timer		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
F19A	318404117		Glass Panel,control Assy ,w/touch Pad		Appelez-nous	-
F20	316418565		Controller,electronic ,es350				$ 354.47
FNI	318224716		Wiring Harness,controller ,main		Appelez-nous	-
FNI	318224715		Wiring Harness,controller ,to Probe/latch		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
