SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

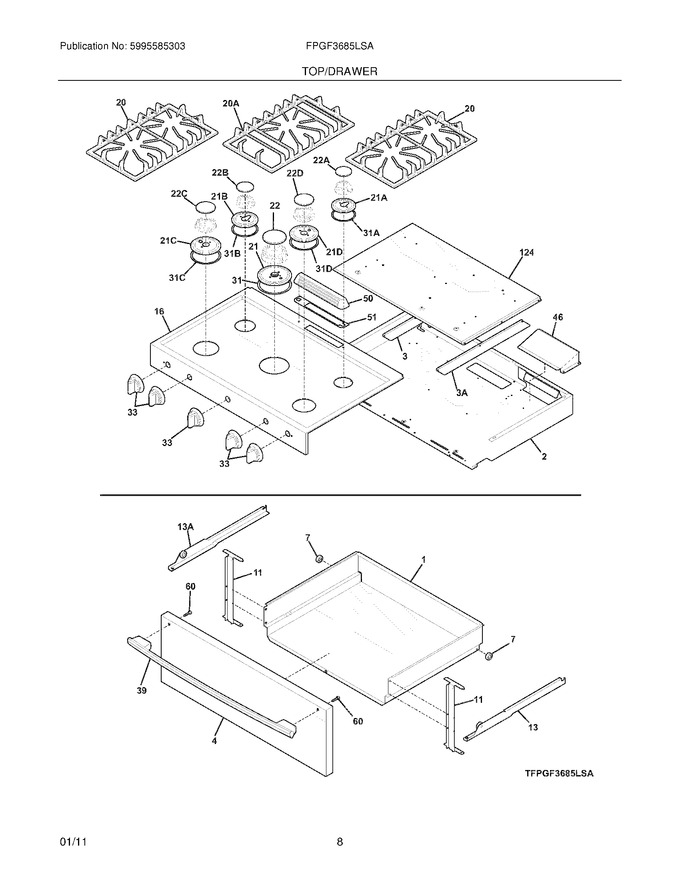

09 - Top/drawer


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318157611		Drawer,storage ,black		Appelez-nous	-
2	318336502		Panel,insulation ,upper		Appelez-nous	-
3	318336100		Divider,vent Box ,side		Appelez-nous	-
4	318315102		Panel,drawer ,stainless ,outer				$ 368.39
7	318332200		Roller,nylon		Appelez-nous	-
11	318316003		Bracket,drawer Panel ,left ,(1)		Appelez-nous	-
11	318316002		Bracket,drawer Panel ,right ,(1)		Appelez-nous	-
13	5303051055		Channel-drawer, Rh				$ 56.60
16	318185246		Main Top Assy,frame/glass ,stainless		Appelez-nous	-
20	318221760		Grate,black ,(2)				$ 360.15
21	316264803		Skirt,16/17k Burner ,black				$ 93.35
22	316271904		Cap,16/17k Burner ,black				$ 206.11
31	316242004		Seal,16k/17k Burner				$ 18.95
33	316564624		Knob,top Valve ,stainless ,(5)		Appelez-nous	-
39	318919700		Handle,door/drawer ,stainless				$ 192.26
46	318336300		Deflector,ventilation		Appelez-nous	-
50	318315900		Deflector,flue		Appelez-nous	-
51	318315301		Gasket,flue Deflector		Appelez-nous	-
60	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
124	318336402		Box,vent   (Replaces: 318336401)		Appelez-nous	-
13A	5303051056		Channel,drawer ,lh				$ 78.44
20A	318221759		Grate,black ,center				$ 379.94
21A	316241904		Skirt,5k Burner ,black				$ 87.75
21B	316241804		Skirt,9.5k Burner ,black ,(2)				$ 84.74
21C	316264903		Skirt,14k Burner ,black				$ 104.69
21D	316241704		Skirt,12k Burner ,black				$ 79.86
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213505		Cap,9.5k Burner ,black				$ 102.30
22C	316219905		Cap,14k Burner ,black				$ 146.53
22D	316213605		Cap,12k Burner ,black				$ 143.06
31A	316242003		Seal,5k Burner				$ 15.17
31B	316242002		Seal,5k/9.5k Burner				$ 25.02
31C	316242000		Seal,12k/14k Burner				$ 73.71
31D	316242001		Seal,9.5k/12k Burner				$ 23.06
3A	318336200		Divider,vent Box ,center		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303304015		Washer, Padded		Appelez-nous	-
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17

    View Diagram in Separate Window       Print Part List
