SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram

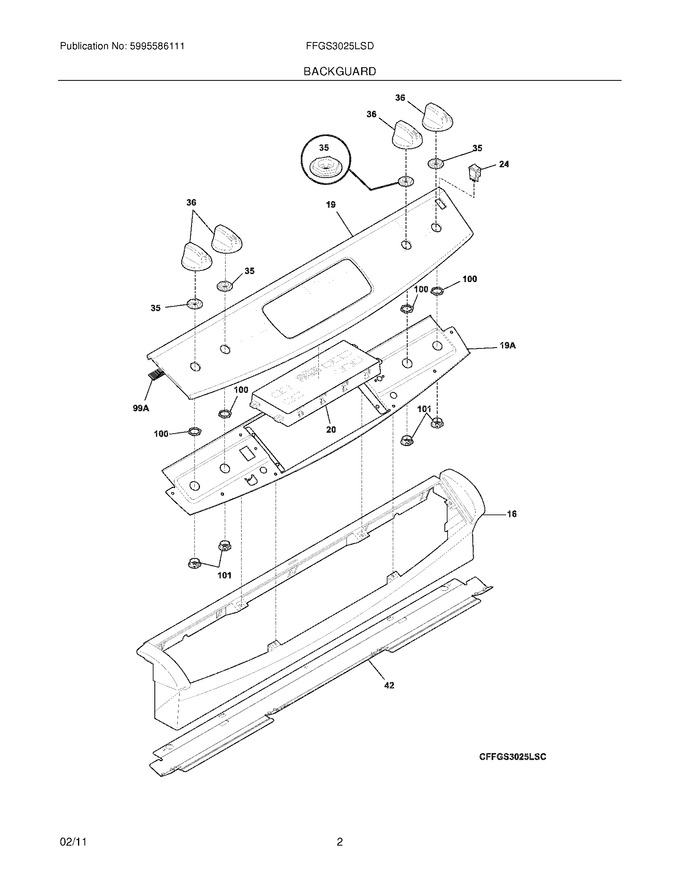

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318935401		Control Panel Assembly,stainless/black ,w/overlay		Appelez-nous	-
35	318233720		Retainer,control Panel ,black				$ 20.48
36	316543812		Knob,control ,black				$ 37.22
42	318574701		Support,control Panel ,black				$ 62.69
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224402		Panel,control Mtg.		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	318414219		Clock/timer,electronic ,black ,es300		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	316419141		Overlay,clock ,black ,es300			Immediately	$ 56.87
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17

    View Diagram in Separate Window       Print Part List
