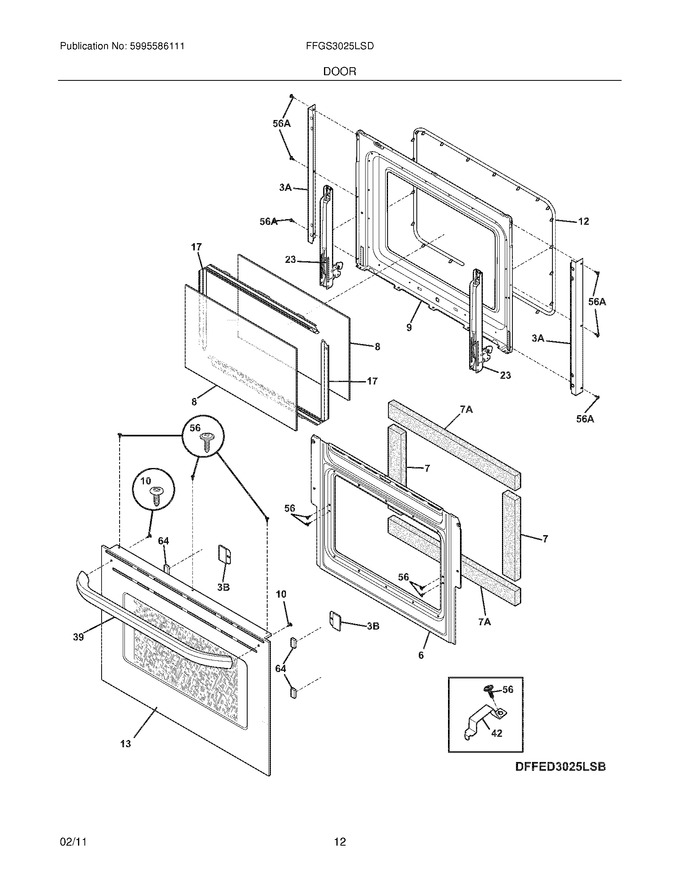

11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260527		Baffle,door ,lower		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	318411646		Liner,oven Door				$ 119.60
10	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
13	318396906		Door Assy,w/glass ,stainless Steel ,outer,w/tape & Foil		Appelez-nous	-
17	318264731		Spacer,glass ,(2)   (Replaces: 318264715)				$ 72.05
23	318567101		Hinge,oven Door ,(2)				$ 76.18
39	316558201		Handle,door ,stainless   (Replaces: 316558200)				$ 174.23
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262111		Cover,rear Door ,black ,(2)				$ 54.60
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	316221001		Label,anti-tip		Appelez-nous	-
