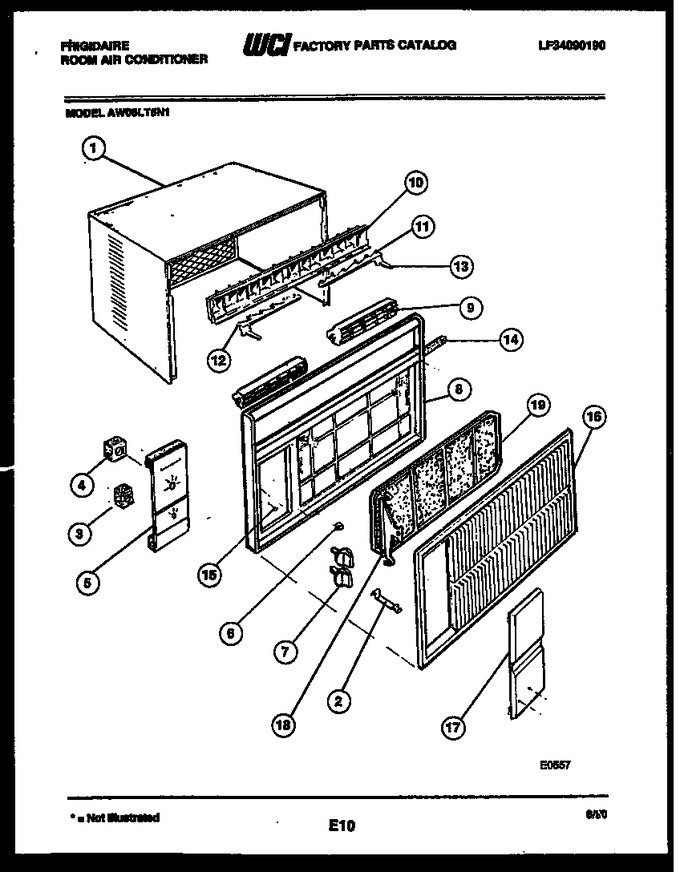

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207281 | Wrapper |
|
- | |||||
| 2 | 5308010914 | Clip-front To Base |
|
- | |||||
| 3 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 4 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 5 | 5308017286 | Plate-dial |
|
- | |||||
| 6 | 5303002189 | Knob-slide |
|
- | |||||
| 7 | 5308016109 | Knob-control |
|
- | |||||
| 8 | 3204214 | Front-complete |
|
- | |||||
| 9 | 5308017244 | Frame-horiz Louver |
|
- | |||||
| 10 | 5303002458 | Vert. Louver & Link Assy. |
|
- | |||||
| 11 | 5303002164 | Link - Vert Louver Rh |
|
- | |||||
| 12 | 5303002165 | Link - Vert Louver Lh |
|
- | |||||
| 13 | 5303001844 | Clip - Link Detect |
|
- | |||||
| 14 | 5308014101 | Seal-mullion |
|
- | |||||
| 15 | 5308008175 | Screw-front |
|
- | |||||
| 16 | 5303016551 | Panel - Front |
|
- | |||||
| 17 | 5308016198 | Door - Front |
|
- | |||||
| 18 | 5308017294 | Track - Filter |
|
- | |||||
| 19 | 5308017249 | Filter - Air |
|
- |
