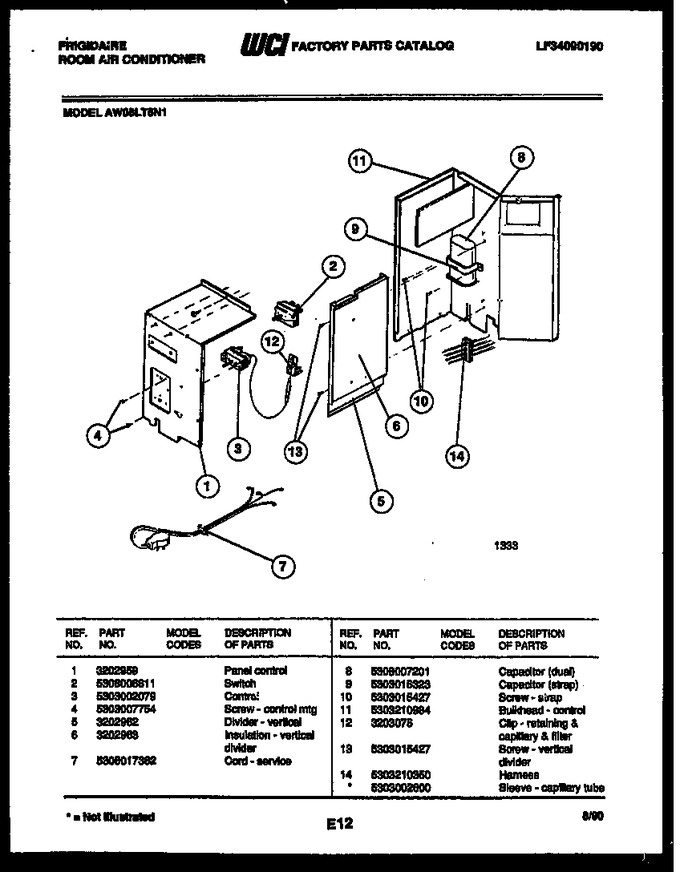

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202959 | Panel-control |
|
- | |||||
| 1 | 32029075 | Screw - Motor Mounting |
|
- | |||||
| 2 | 5303202805 | Motor-fan |
|
- | |||||
| 2 | 5308006811 | Switch |
|
$ 33.65 | |||||
| 3 | 3202938 | Bulkhead-air System |
|
- | |||||
| 3 | 5303002079 | Control |
|
- | |||||
| 4 | 5303007754 | Screw-control Mtg. |
|
- | |||||
| 4 | 5303207278 | Shroud - Condenser |
|
- | |||||
| 5 | 5303207279 | Blade - Fan |
|
- | |||||
| 5 | 3202962 | Divider-vertical |
|
- | |||||
| 6 | 5303201132 | Wheel - Blower |
|
- | |||||
| 6 | 3202963 | Insulation - Vertical Divider |
|
- | |||||
| 7 | 5308017362 | Cord-service |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 8 | 5308007201 | Capacitor (dual) |
|
- | |||||
| 9 | 3202975 | Screw |
|
- | |||||
| 9 | 5303015323 | Capacitor (strap) |
|
- | |||||
| 10 | 5303015427 | Screw-strap |
|
- | |||||
| 10 | 3202957 | Cover-top |
|
- | |||||
| 11 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 12 | 3203075 | Clip - Retaining & Capillary & Filter |
|
- | |||||
| 13 | 5303015427 | Screw - Vertical Divider |
|
- | |||||
| 14 | 5303210350 | Harness |
|
- | |||||
| *33848 | 5303002600 | Sleeve - Capillary Tube |
|
- | |||||
| *33849 | 3202951 | Seal-shroud/base |
|
- | |||||
| *33849 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *33849 | 5303015427 | Screw-top Cover |
|
- |
