SELECT A DIAGRAM

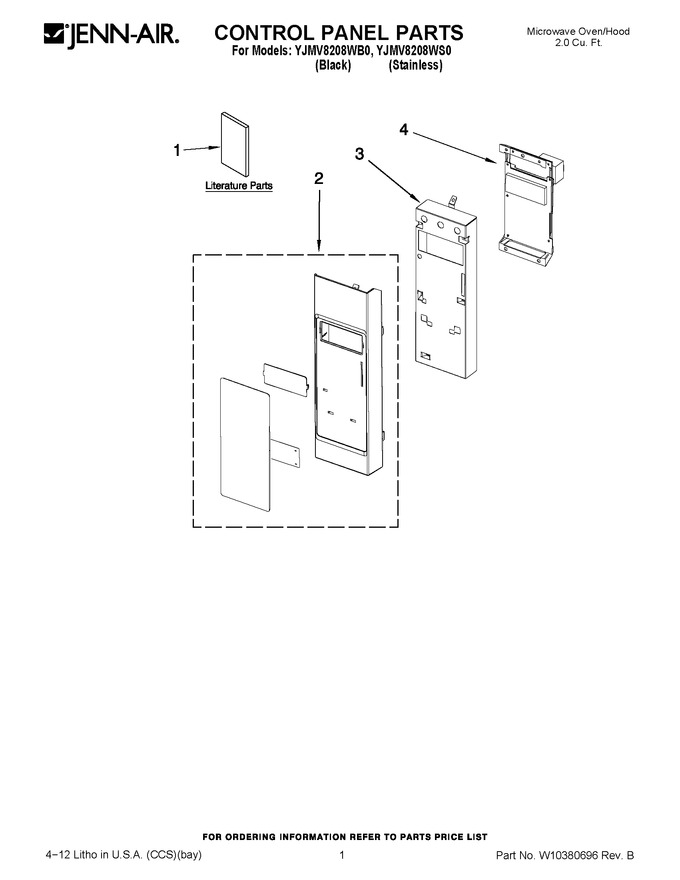

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318723		U & C Guide		Appelez-nous	-
1	W10318725		Tech Sheet, Slim		Appelez-nous	-
1	W10318726		Quick Reference		Appelez-nous	-
1	W10344701		Install,instruct.		Appelez-nous	-
2	W10372906		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
2	W10372908		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 280.01
3	W10245199		Bracket, Control				$ 60.00
4	W10292171		Microcomputer				$ 146.03

    View Diagram in Separate Window       Print Part List
