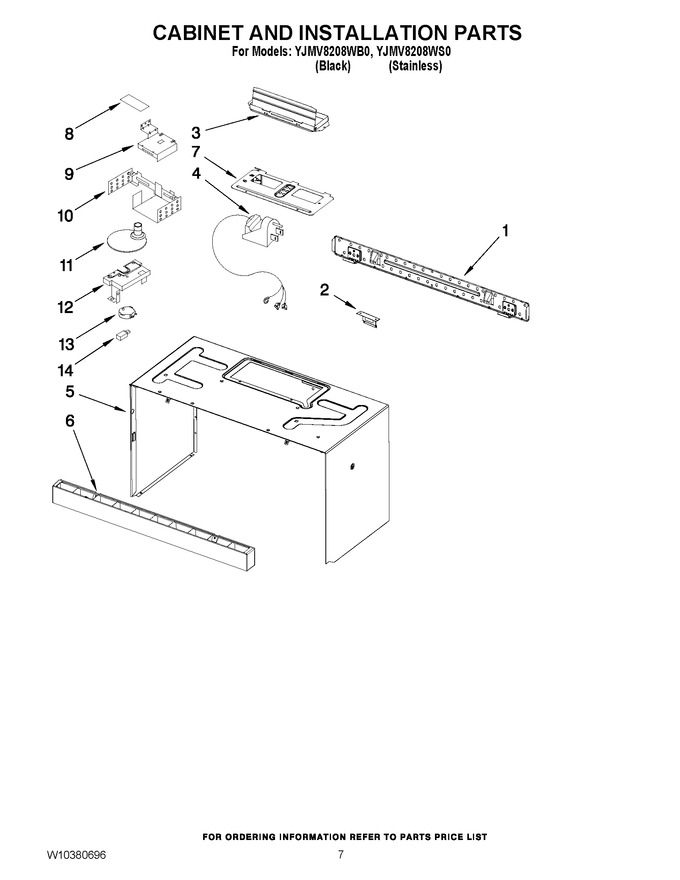

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | 8206388 | Cord, Power |
|
$ 78.08 | |||||
| 5 | WPW10245176 | Case, Outer (Replaces: W10245176) |
|
$ 198.23 | |||||
| 6 | WPW10310713 | Grille, Vent (black) (Replaces: W10310713) |
|
$ 107.42 | |||||
| 6 | W10310711 | Grille, Vent (stainless) |
|
Immediately | $ 195.11 | ||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| 8 | WPW10499304 | Pcba, Vent (Replaces: W10499304) |
|
$ 304.22 | |||||
| 9 | W10310722 | Holder, Pcba |
|
- | |||||
| 10 | W10508582 | Bracket, Motor |
|
- | |||||
| 11 | W10310724 | Cam, Rotation |
|
- | |||||
| 12 | W10310725 | Plate |
|
- | |||||
| 13 | W10310726 | Motor, Vent |
|
- | |||||
| 14 | W10310727 | Switch, Micro |
|
- | |||||
| NI | 8205948 | Installation, Hardware |
|
$ 23.06 | |||||
| NI | W10190020 | Template, Upper |
|
$ 56.21 | |||||
| NI | W10539840 | Ground Wire Assy (Replaces: 8205696) |
|
$ 21.50 | |||||
| NI | W10372914 | Main Harness |
|
- | |||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10259386 | Hdlmp/tt Wire Assy |
|
- |
