01 - Body Parts
02 - Blower Parts

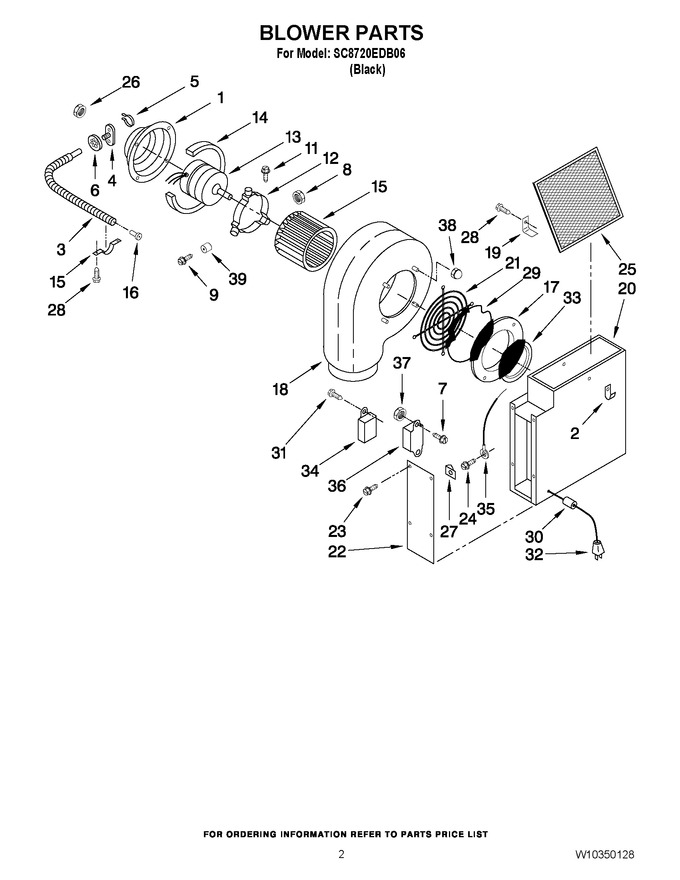

03 - Control Panel Parts
04 - Burner Module Parts
05 - Grill Module Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F512-80 | Cover, Motor |
|
- | |||||
| 2 | 3415F004-51 | Clip, Plenum |
|
- | |||||
| 3 | 7434P012-60 | Conduit, Metal |
|
- | |||||
| 4 | 7417P023-60 | Connector, Conduit |
|
- | |||||
| 5 | 7111P027-60 | Clamp, Cable |
|
- | |||||
| 6 | 7104P008-60 | Clip, Conduit |
|
- | |||||
| 7 | WP90767 | Screw, Mtg. (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | WP7103P027-60 | Nut, Band (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 9 | 7101P326-60 | Screw, Band |
|
- | |||||
| 11 | 71002058 | Screw, Spacer (3) (Replaces: 7101P447-60) |
|
$ 5.82 | |||||
| 12 | 3415F003-51 | Band-motor |
|
$ 41.94 | |||||
| 13 | 7409P010-60 | Motor, Blower |
|
- | |||||
| 14 | W10250511 | Gasket, Foam |
|
- | |||||
| 15 | 3415F004-51 | Clip |
|
- | |||||
| 15 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 16 | 8007P031-60 | Bushing, Conduit |
|
- | |||||
| 17 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 18 | 2822W001-80 | Housing, Blower |
|
- | |||||
| 19 | 3804F188-50 | Retainer, Filter |
|
- | |||||
| 20 | 2801W038-80 | Plenum |
|
$ 82.61 | |||||
| 21 | 8312P151-60 | Guard, Blower |
|
- | |||||
| 22 | 4005F648-80 | Plate, Cover |
|
$ 52.33 | |||||
| 23 | WP90767 | Screw, Cover Plate (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 24 | WP90767 | Screw, Ground (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 8312P121-60) |
|
Immediately | $ 44.51 | ||||
| 26 | WPY707702 | Locknut (Replaces: 7103P162-60) |
|
Immediately | $ 6.26 | ||||
| 27 | 7104P003-60 | Clip, Cover Plate |
|
- | |||||
| 28 | 8019P018-60 | Screw, Plenum |
|
- | |||||
| 29 | 8038P003-60 | Spring, Retainer |
|
$ 9.13 | |||||
| 30 | 8019P018-60 | Relief, Strain |
|
- | |||||
| 31 | WP71001171 | Screw, Relay (2) (Replaces: 7101P460-60) |
|
$ 6.26 | |||||
| 32 | 7402P089-60 | Cord, Power |
|
- | |||||
| 33 | 4026F009-51 | Ring, Restrictor |
|
$ 51.50 | |||||
| 34 | 7104P006-60 | Clip, ``j`` (2) |
|
- | |||||
| 34 | 7428P029-60 | Relay |
|
$ 168.32 | |||||
| 35 | 5112P295-60 | Wire, Ground |
|
- | |||||
| 36 | 7431P006-60 | Module, Spark |
|
- | |||||
| 37 | WPY707702 | Nut, Mtg. (Replaces: 7103P162-60) |
|
Immediately | $ 6.26 | ||||
| 38 | 7103P192-60 | Cap, Nut (4) |
|
- | |||||
| 39 | WP71003558 | Isolator, Motor (Replaces: 8038P002-60) |
|
$ 11.47 |
