01 - Body Parts
02 - Blower Parts
03 - Control Panel Parts

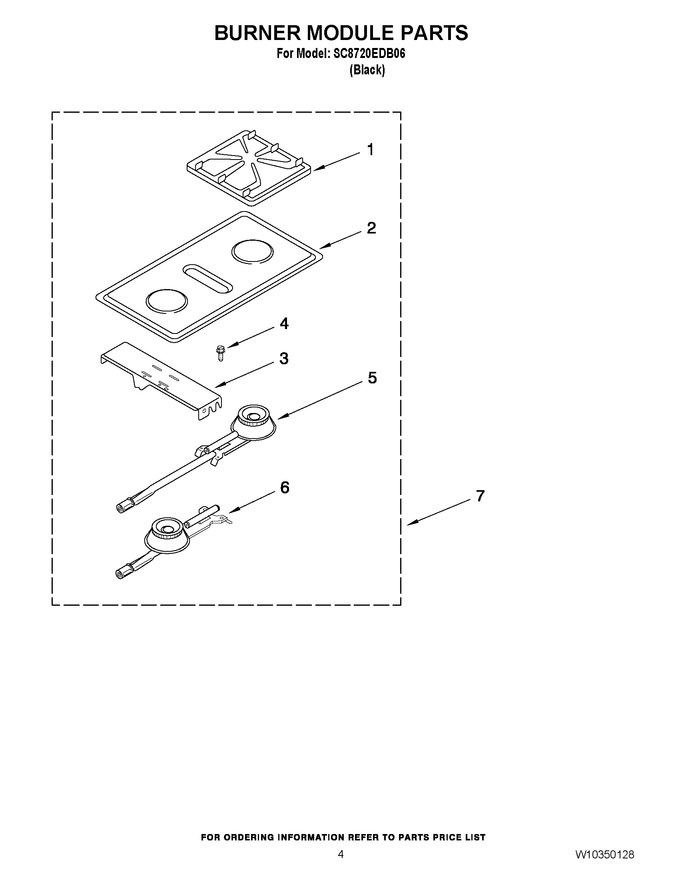

04 - Burner Module Parts
05 - Grill Module Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7518P036-60 | Grate, Burner (2) |
|
- | |||||
| 2 | 3401W055-09 | Pan, Aeration (black) |
|
- | |||||
| 2 | 3824F017-1X | Pan, Aeration (standoff (4)) |
|
- | |||||
| 3 | WP3801F403-80 | Bracket, Burner (Replaces: 3801F403-80) |
|
$ 71.17 | |||||
| 4 | WP90767 | Screw, Bracket (4) (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 74005189 | Burner, Rear (black) (Replaces: 7505P284-60) |
|
$ 211.73 | |||||
| 6 | 74005189 | Burner, Front (black) (Replaces: 7505P284-60) |
|
$ 211.73 | |||||
| 7 | SCM10DB | Complete Module (black) |
|
- |
