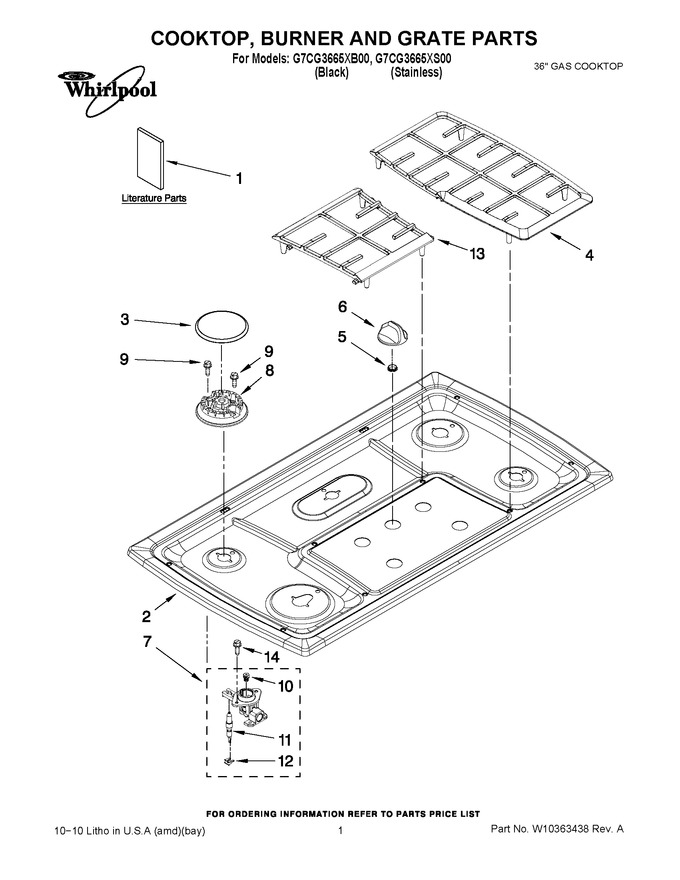

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10285002 | Installation Instructions |
|
- | |||||
| 1 | W10344644 | Use & Care Guide |
|
- | |||||
| 1 | W10292747 | Instructions, Lp Conversion |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10285209 | Cooktop (stainless) |
|
- | |||||
| 2 | W10268482 | Cooktop (black) |
|
- | |||||
| 3 | WPW10300348 | Cap, Burner (Replaces: W10300348) |
|
$ 215.53 | |||||
| 4 | W10300406 | Grate, Burner |
|
$ 107.60 | |||||
| 5 | WP8286452 | Grommet (Replaces: 8286452) |
|
$ 8.17 | |||||
| 6 | WPW10284883 | Knob, Control (black) (Replaces: W10284883) |
|
Immediately | $ 18.45 | ||||
| 6 | WPW10284885 | Knob, Control (stainless) (Replaces: W10284885) |
|
Immediately | $ 20.53 | ||||
| 7 | W10256124 | Holder, Orifice (lf) |
|
- | |||||
| 7 | W10256121 | Holder, Orifice (rr) |
|
- | |||||
| 7 | WPW10256119 | Holder, Orifice (lr,rf) (Replaces: W10256119) |
|
$ 81.46 | |||||
| 7 | W10298665 | Holder, Orifice (center) |
|
- | |||||
| 8 | W10256026 | Spreader, Flame (rr) |
|
Immediately | $ 158.94 | ||||
| 8 | W11162114 | Spreader, Flame (center) (Replaces: W10298664) |
|
$ 77.06 | |||||
| 8 | WPW10256024 | Spreader, Flame (lr,rf) (Replaces: W10256024) |
|
$ 78.06 | |||||
| 8 | W11106799 | Spreader, Flame (lf) (Replaces: W10256029) |
|
Immediately | $ 80.11 | ||||
| 9 | WPW10373929 | Screw, Burner Top (Replaces: W10345316) |
|
$ 30.81 | |||||
| 10 | W10256133 | Orifice (lf-17k) |
|
- | |||||
| 10 | W10340421 | Orifice (center) |
|
- | |||||
| 10 | WPW10256128 | Orifice (lr,rf) (Replaces: W10256128) |
|
$ 86.10 | |||||
| 10 | W10819958 | Orifice (lf-1.2k) (Replaces: W10256132) |
|
$ 83.80 | |||||
| 10 | WPW10340423 | Orifice (rr) (Replaces: W10340423) |
|
$ 86.10 | |||||
| 11 | W10833887 | Electrode, Burner (Replaces: W10256047) |
|
Immediately | $ 28.59 | ||||
| 12 | W10256046 | Spring, Electrode |
|
$ 9.91 | |||||
| 13 | W10300408 | Grate, Center |
|
$ 124.97 | |||||
| 14 | WP3177991 | Screw, Orifice Holder (Replaces: 3177991) |
|
Immediately | $ 6.47 |
