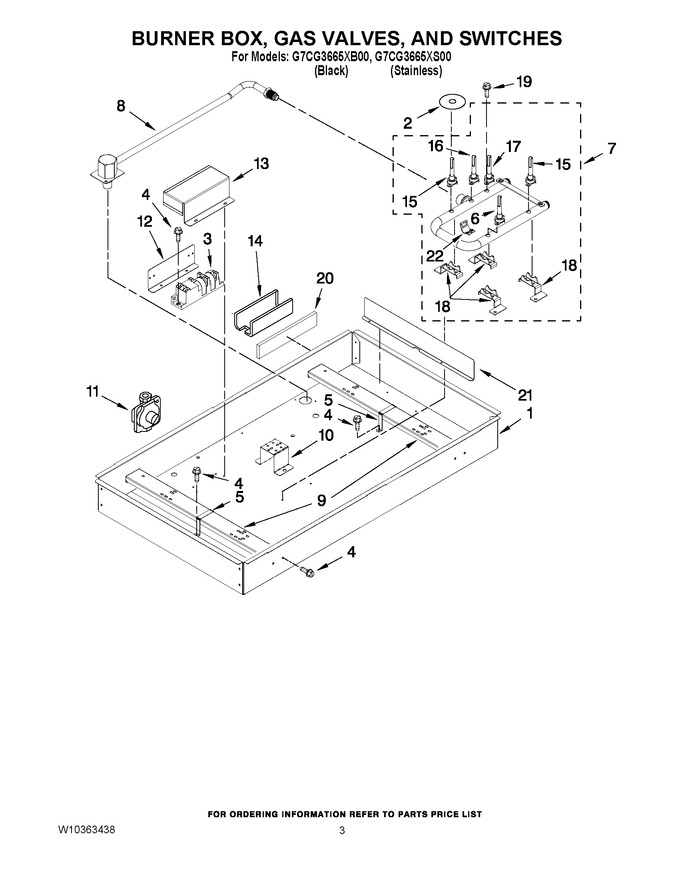

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300359		Burner Box		Appelez-nous	-
2	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
3	WPW10110486		Module, Spark   (Replaces: W10110489)				$ 285.33
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	W10300397		Bracket, Hold Down				$ 25.61
6	W10286714		Valve, Gas (lf)				$ 174.78
7	W10286652		Manifold, Assembly		Appelez-nous	-
8	W10350561		Pipe, Fitting   (Replaces: W10300382)				$ 208.15
9	W10331608		Rail, Long		Appelez-nous	-
10	W10286648		Bracket		Appelez-nous	-
11	W11087445		Regulator, Pressure   (Replaces: 7510P093-60)			Immediately	$ 177.34
12	W10319059		Bracket, Spark Module   (Replaces: W10268387)		Appelez-nous	-
13	W10268420		Bracket, Spark Module		Appelez-nous	-
14	W10244689		Insulation, Spark Module		Appelez-nous	-
15	W10441650		Valve, Gas (lr,rf)   (Replaces: W10256087)				$ 232.62
16	W10286713		Valve, Gas Center				$ 118.25
17	W10286712		Valve, Gas (rr)				$ 107.40
18	W10286694		Bracket, Valve Lr,center,rf,rr		Appelez-nous	-
19	W11666001		Screw   (Replaces: W10246216)				$ 12.24
20	W10331235		Insulation, Lateral		Appelez-nous	-
21	W10331240		Shield, Heat		Appelez-nous	-
22	W10246217		Bracket, Valve Lf		Appelez-nous	-
NI	W10300390		Tubing, Gas (lf-inner)		Appelez-nous	-
NI	W10300327		Tubing, Gas (lf-outer)		Appelez-nous	-
NI	W10285252		Tubing, Gas (lr)		Appelez-nous	-
NI	W10285253		Tubing, Gas (center)		Appelez-nous	-
NI	W10285255		Tubing, Gas (rf)		Appelez-nous	-
NI	W10285254		Tubing, Gas (rr)		Appelez-nous	-
