SELECT A DIAGRAM

02 - Cabinet Parts


03 - Console And Control Parts


04 - Pump, Water Valve, Water Inlet


05 - Tub Detail


06 - Motor And Idler Arm Clutch


07 - Transmission Parts

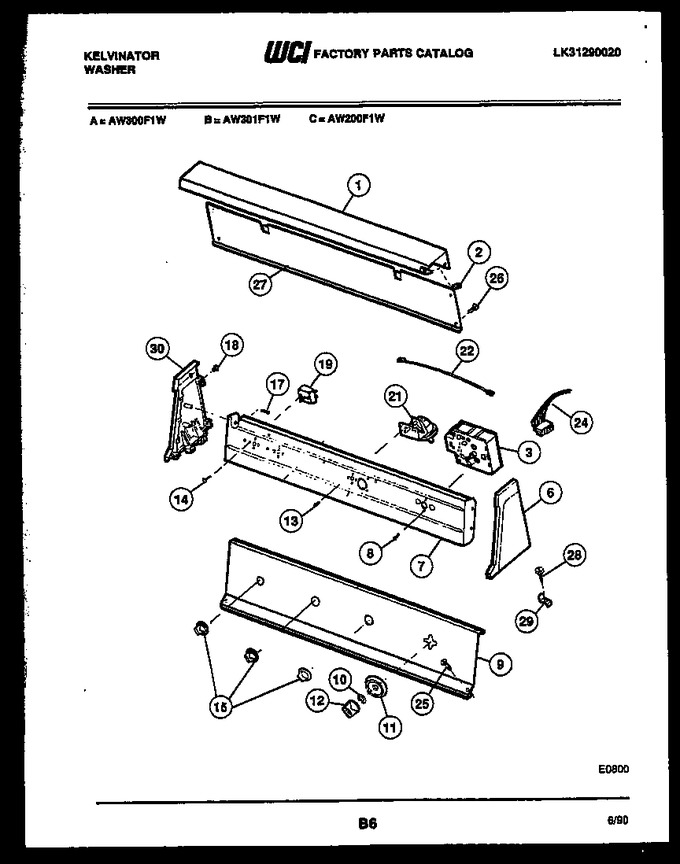

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207074		Top-cover		Appelez-nous	-
2	08010825		Clip (3)		Appelez-nous	-
3	3015649		Timer		Appelez-nous	-
6	5303206914		End Cap & Trim Assembly Rh		Appelez-nous	-
7	08015503		Bracket-control Mtg		Appelez-nous	-
8	3161188		Screw-timer (2)		Appelez-nous	-
9	F141111-100		Trimplate		Appelez-nous	-
10	08015493		Spacer-timer		Appelez-nous	-
11	08015529		Pointer		Appelez-nous	-
12	5303207073		Knob - Timer				$ 30.35
13	3017891		Screw		Appelez-nous	-
14	3161259		Screw-switch To Bracket (2)				$ 6.83
15	08008462		Rotary Knob (2)		Appelez-nous	-
17	3161244		Screw-bracket To End Trim (4)		Appelez-nous	-
18	08010830		Clip (4)		Appelez-nous	-
19	08014346		Switch		Appelez-nous	-
21	5303209659		Pressure Switch		Appelez-nous	-
24	3018965		Harness		Appelez-nous	-
25	08011318		Screw-console To Top Panel (2)		Appelez-nous	-
26	3015671		Screw-cover To Backsheet		Appelez-nous	-
27	08010824		Backsheet		Appelez-nous	-
28	08001689		Screw		Appelez-nous	-
29	3161198		Terminal		Appelez-nous	-
30	5303206915		End Cap & Trim Assembly Lh		Appelez-nous	-
24A	3161276		Clip-harness To Cab Rh Rear (2) (non-illustrated)		Appelez-nous	-
24B	08010837		Tie-harness To Top Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
