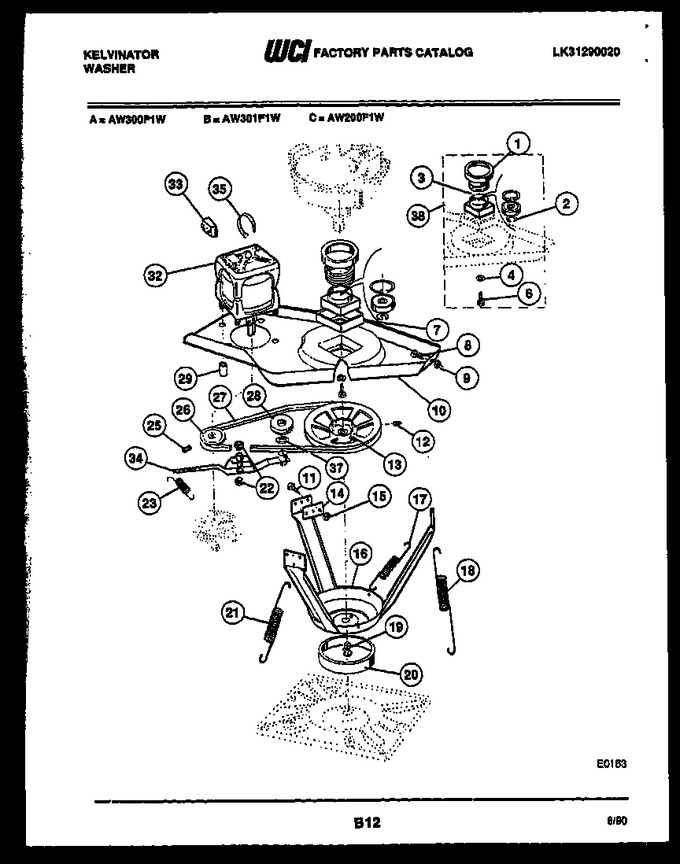

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3161182 | Sleeve-clutch Coil |
|
- | |||||
| 2 | 08015536 | Snap Ring |
|
- | |||||
| 3 | 08057430 | Washer |
|
- | |||||
| 4 | 5303207426 | Spacer-rubber (2) |
|
$ 9.21 | |||||
| 6 | 08027582 | Screw (2) |
|
- | |||||
| 7 | F077009-100 | Cushion |
|
- | |||||
| 8 | F077090-000 | Screw ( 3 ) |
|
- | |||||
| 9 | F073804-000 | Locknut ( 3 ) |
|
- | |||||
| 10 | 08002472 | Plate-support |
|
- | |||||
| 11 | F063532000 | Sems Screw |
|
- | |||||
| 12 | 3161456 | Set Screw |
|
- | |||||
| 13 | 3937008 | Transmission Pulley |
|
- | |||||
| 14 | 08002379 | Nut-plate (3) |
|
- | |||||
| 15 | 08002377 | Keps Nut (6) |
|
- | |||||
| 16 | 08011310 | Leg & Dome Assy |
|
- | |||||
| 17 | 08011311 | Spring-horizontal |
|
- | |||||
| 18 | 08011317 | Spring-vertical Long |
|
- | |||||
| 19 | 3161203 | Nut-expression |
|
- | |||||
| 20 | F130789-000 | Snubber Ring |
|
- | |||||
| 21 | F140141-100 | Vertical Spring Short |
|
- | |||||
| 22 | 08027535 | Bushing |
|
- | |||||
| 23 | 08002456 | Spring |
|
- | |||||
| 24 | F141131-000 | Spacer |
|
- | |||||
| 25 | F132861-000 | Set Screw |
|
- | |||||
| 26 | 08006686 | Motor Pulley |
|
- | |||||
| 27 | 3161152 | V-belt |
|
- | |||||
| 28 | F140542-000 | V-pulley |
|
- | |||||
| 29 | F141131-000 | Spacer (3) |
|
- | |||||
| 32 | 08015502 | Motor & Switch Assy |
|
- | |||||
| 33 | 08014888 | Motor Switch |
|
- | |||||
| 34 | 3937001 | Idler Arm Assy. |
|
- | |||||
| 35 | 3161300 | Harness Tie (2) |
|
- | |||||
| 36 | 08950058 | Bearing Housing Pkg |
|
- | |||||
| 37 | F140083-000 | Spring Washer |
|
- |
