SELECT A DIAGRAM

01 - Microwave Door Parts

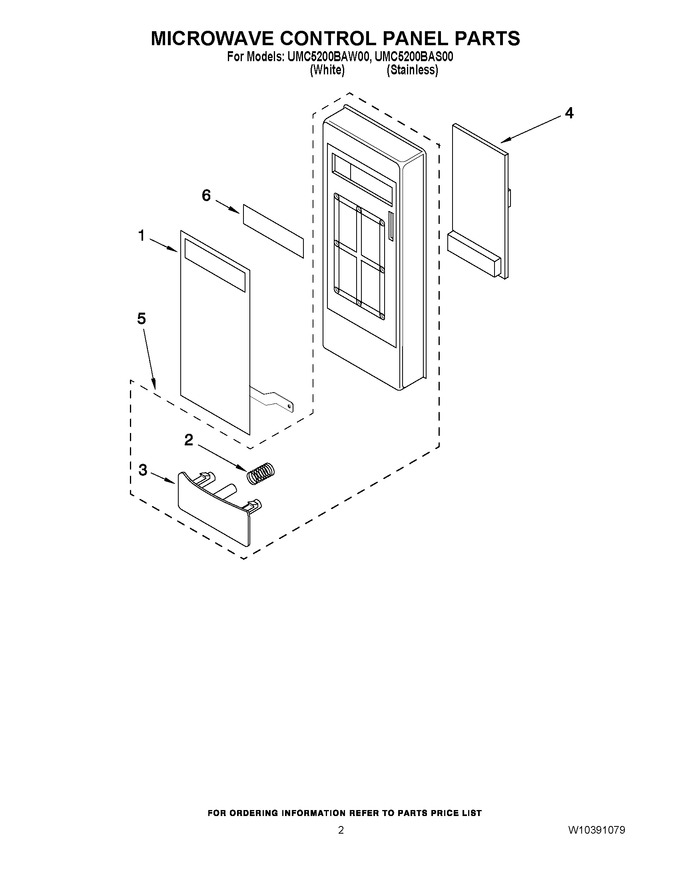

02 - Microwave Control Panel Parts


03 - Microwave Oven Cavity Parts


04 - Microwave Latch Board Parts


05 - Microwave Interior Parts


06 - Base Plate And Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261279		Sw., Membrane (white)		Appelez-nous	-
1	W10261280		Sw., Membrane (black Ss Models)		Appelez-nous	-
2	DE61-70026A		Spring, Button			Immediately	$ 0.85
3	DE64-01502A		Button, Push (white)		Appelez-nous	-
3	DE64-01502B		Button, Push (black, Ss Models)		Appelez-nous	-
4	W10261245		Pcb		Appelez-nous	-
5	W10261267		Assy, Control (white)		Appelez-nous	-
5	W10261272		Assy, Control (black)		Appelez-nous	-
5	W10261273		Assy, Control (stainless)		Appelez-nous	-
6	DE67-40179A		Window, Display		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
