Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE31-90051A Blade-fan Special Order $ 6.95

2 DE71-00165A Cover, Motor Appelez-nous -
3 8206562 H.v. Capacitor   (Replaces: 2501-001016) In-Stock Immediately $ 108.83

4 DE61-50170A H.v.c Bracket Appelez-nous -
5 DE96-00392A Assembly, Leadwire Appelez-nous -
6 DE96-00399B Filter, Noise Special Order $ 70.23

7 DE91-70063D H.v. Diode Cable In-Stock Immediately $ 15.89

8 DE39-00040G Power Cord Appelez-nous -
9 DE47-20030A Thermostat Special Order $ 17.58

10 DE07-00005A Lamp, Baseless Appelez-nous -
11 DE71-00012A Duct, Air Appelez-nous -
12 ABC20 Fuse   (Replaces: 3601-001198) In-Stock Immediately $ 10.31

13 WPW10126794 Assy., Mgt   (Replaces: W10126794) Special Order $ 282.22

14 DE31-10155T Motor, Fan Special Order $ 91.55


    View Diagram in Separate Window     Print Icon   Print Part List

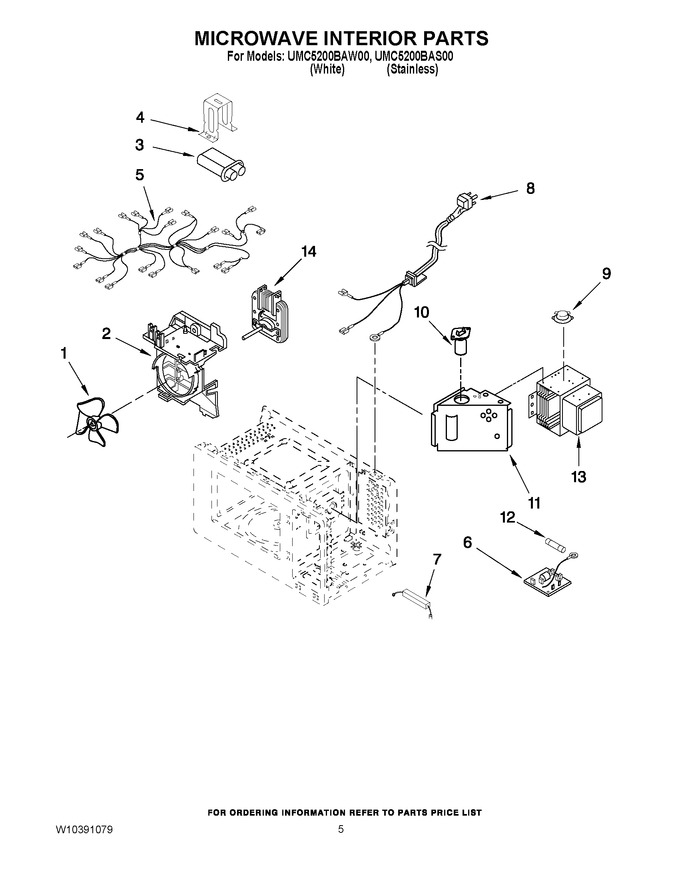

Diagram for UMC5200BAW00
