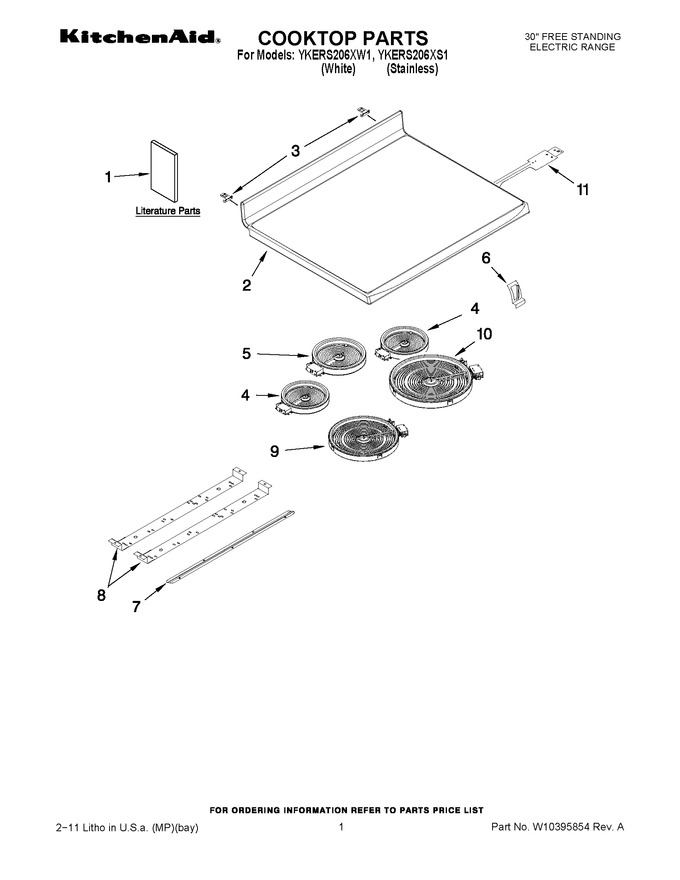

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328279 | Use & Care Guide (french) |
|
- | |||||
| 1 | W10344641 | Installation Instructions |
|
- | |||||
| 1 | W10346737 | Tech Sheet |
|
- | |||||
| 1 | W10328277 | Use & Care Guide (english) |
|
- | |||||
| 2 | W10350539 | Cooktop (stainless) |
|
$ 417.27 | |||||
| 2 | W10350540 | Cooktop (white) |
|
$ 390.78 | |||||
| 3 | W10354984 | Hinge Bracket Cooktop |
|
- | |||||
| 4 | W10350483 | Element, Lr/rr |
|
$ 112.96 | |||||
| 5 | W10350493 | Element, Warm |
|
$ 106.07 | |||||
| 6 | W10350545 | Clip, Element |
|
$ 32.32 | |||||
| 7 | W10350543 | Bracket, Support Cooktop, Front |
|
- | |||||
| 8 | W10350542 | Channel, Element Support |
|
- | |||||
| 9 | W11517959 | Element, Lf (Replaces: W10350485) |
|
Immediately | $ 121.00 | ||||
| 10 | W10350491 | Element, Rf |
|
- | |||||
| 11 | W10347003 | Bracket, Support Element |
|
- |
