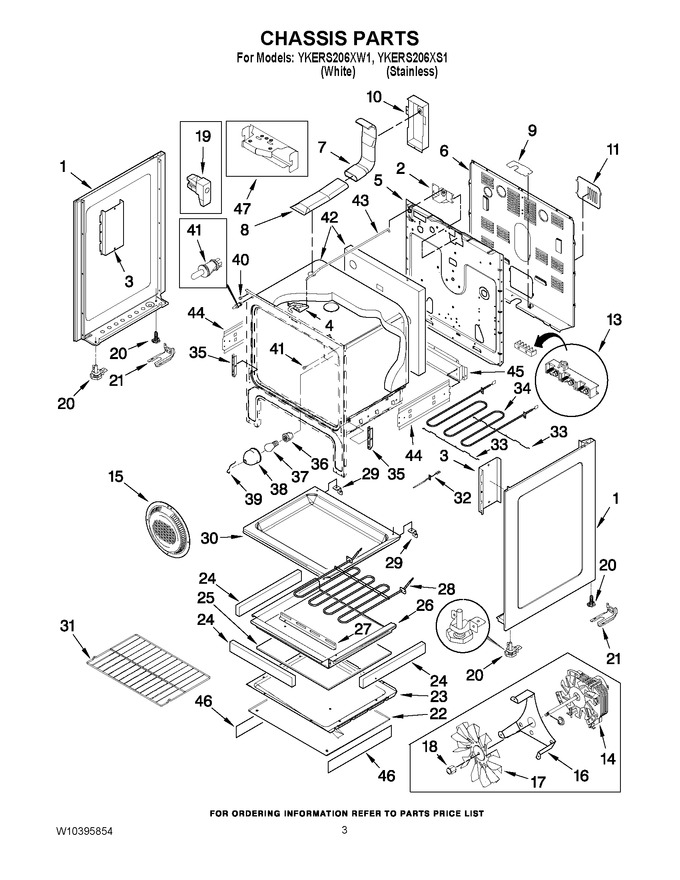

03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10346239		Panel, Side (white-rh)				$ 119.16
1	W10346240		Panel, Side (white-lh)				$ 130.20
1	W10346237		Panel, Side (black-rh)				$ 85.31
1	W10346238		Panel, Side (black-lh)				$ 85.34
2	WPW10350466		Latch, Motor   (Replaces: W10350466)				$ 223.21
3	W10347457		Side Shield		Appelez-nous	-
4	W10346955		Door Latch		Appelez-nous	-
5	W10350105		Cover, Inner Rear		Appelez-nous	-
6	W10350451		Main Back		Appelez-nous	-
7	W10350438		Tube, Vent Upper Oven				$ 30.71
8	W10350337		Tube, Vent With Catalyst				$ 35.93
9	W10358961		Bracket, Cord		Appelez-nous	-
10	W10350117		Shield, Wire Vent Tube		Appelez-nous	-
11	W10350126		Panel, Access		Appelez-nous	-
13	W10358958		Terminal-block Kit		Appelez-nous	-
14	WPW10350467		Motor Fan, Convection   (Replaces: W10350467)				$ 307.60
15	W10347448		Cover, Fan				$ 74.41
16	W10347442		Bracket, Motor				$ 27.15
17	WPW10355276		Blade, Fan   (Replaces: W10355276)				$ 70.91
18	W10347453		Nut, Fan Blade				$ 32.93
19	W10346958		Clip-oven Body		Appelez-nous	-
20	W10346264		Leg, Leveling (front Metal)				$ 44.17
20	W10346263		Leg, Leveling (rear Plastic)				$ 5.61
21	W10544996		Bracket, Anti-tip Kit   (Replaces: W10347458)				$ 79.97
22	W10350115		Shield, Heat Oven Lower		Appelez-nous	-
23	W10350116		Shield, Heat Wool Lower		Appelez-nous	-
24	W10350135		Insulation, Oven Bottom		Appelez-nous	-
25	W10350133		Insulation, Lower Shield		Appelez-nous	-
26	W10350109		Tray, Bake Element		Appelez-nous	-
27	W10350112		Bracket, Support Bake Element		Appelez-nous	-
28	W10350448		Bake Element, 3000 W				$ 93.64
29	W10350111		Bracket, Support Oven Bottom				$ 24.36
30	W10350107		Oven Bottom				$ 105.88
31	W10346265		Oven Rack				$ 53.32
32	W10347247		Oven Sensor				$ 110.42
33	W10350450		Support, Broil Element		Appelez-nous	-
34	W10350447		Broil Element		Appelez-nous	-
35	W10347318		Bracket, Hinge Oven Door				$ 27.12
36	W10346268		Socket, Light				$ 37.75
37	8009		Bulb, Light   (Replaces: W10346855)			Immediately	$ 16.80
38	W10346874		Lens-light		Appelez-nous	-
39	W10346877		Retainer, Oven Light Lens				$ 5.27
40	W10347277		Spacer, Oven Door		Appelez-nous	-
41	W10346267		Switch, Oven Light				$ 87.20
42	W10350132		Insulation (oven Back)		Appelez-nous	-
42	W10350131		Insulation (oven Wrapper)		Appelez-nous	-
43	W10350462		Rod, Auto Latch		Appelez-nous	-
44	W10355047		Shield-side		Appelez-nous	-
45	W10355050		Shield, Rear		Appelez-nous	-
46	W10355274		Glide-outer				$ 42.25
47	W10357267		Bracket-panel		Appelez-nous	-
NI	W10358959		Cover, Element		Appelez-nous	-
NI	W10358960		Power Cord				$ 54.23
