SELECT A DIAGRAM

01 - Base & Drive (rev. G-j)


02 - Control Panel (rev. G-j)


03 - Exterior (rev. G-j)


04 - Transmission (rev. G-j)


05 - Tub (rev. G-j)


06 - Water Carrying (rev. G-j)

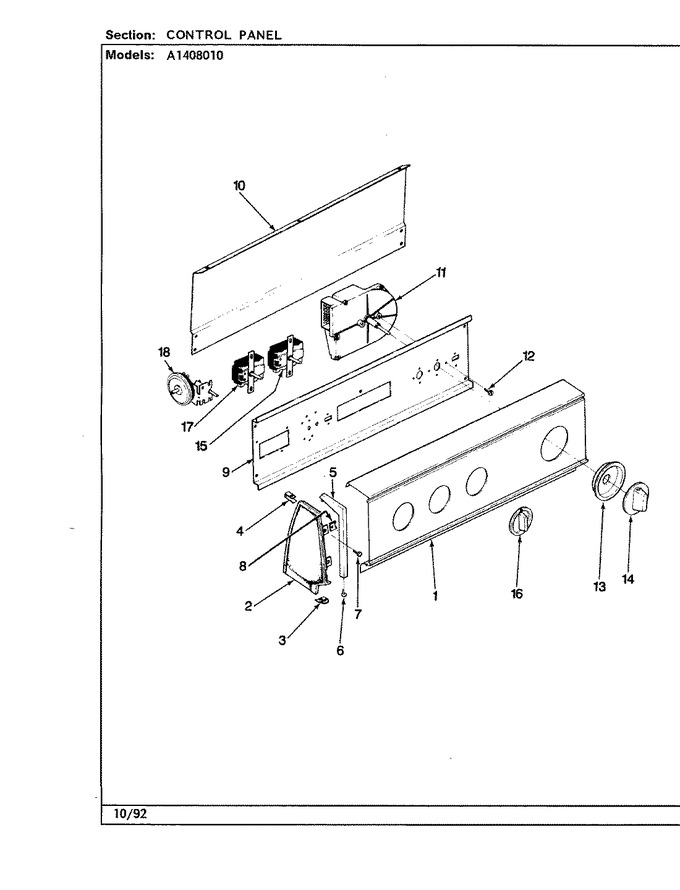

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl	G	Appelez-nous	-
1	25-7793		Screw	G	Appelez-nous	-
1	35-2178		Control Panel	G	Appelez-nous	-
2	35-2487		Cap, End (rt)	G	Appelez-nous	-
2	35-2488		Cap, End (lt)	G	Appelez-nous	-
3	25-7697		Screw	G	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	G	Appelez-nous	-
3	34-9487		Plate, Reinforcement	G	Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap	G	Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)	G		Immediately	$ 6.90
5	53-0278		Trim, End Cap (lt)	G	Appelez-nous	-
5	53-0277		Trim, End Cap (rt)	G	Appelez-nous	-
6	25-7760		Screw	G	Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl	G	Appelez-nous	-
9	53-1676		Shield, Control	G	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	G		Immediately	$ 7.15
10	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
10	25-7853		Retaining Ring	G	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	G	Appelez-nous	-
11	35-2326		Timer	G	Appelez-nous	-
12	25-0205		Screw	G	Appelez-nous	-
13	35-2255		Skirt & Ring Assy	G	Appelez-nous	-
14	35-0498		Timer Knob	G	Appelez-nous	-
15	35-0114		Temp Switch	G	Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
16	35-2186		Knob, Selector	G	Appelez-nous	-
17	35-2193		Switch, Rotary Speed	G	Appelez-nous	-
17	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
18	WP21001554		Switch, Pressure   (Replaces: 35-3283)	H			$ 143.59
18	35-2515		Manual, Use & Care	G	Appelez-nous	-
18	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
18	WP21001554		Pressure Switch   (Replaces: 35-2145)	G			$ 143.59

    View Diagram in Separate Window       Print Part List
