Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2717 Agitator G Appelez-nous -
2 25-7949 Ring, Retaining (ag. Shaft) G Appelez-nous -
3 WP22002933 Screw   (Replaces: 25-7953) G Special Order $ 6.91

4 WPW10309247 Screw, Agitator Retention   (Replaces: 25-7948) G Special Order $ 32.57

5 33-8959 Gasket G Appelez-nous -
6 35-2979 Gasket, Tub/hsg (seal) G Appelez-nous -
7 33-8799 Reinf Plate G Appelez-nous -
8 25-7783 Screw G Appelez-nous -
9 35-2328 Seal, Tub Top G Special Order $ 49.43

10 35-2733 Cap, Agitator G Appelez-nous -
11 35-3016 Basket Assy G Appelez-nous -
12 35-2978 Seal, Tub/housing G Special Order $ 5.85

13 35-2952 Tub Assy G Appelez-nous -
14 35-2262 Shield, Tub Top G Appelez-nous -
14 35-2034 Top, Tub G Appelez-nous -
15 35-2550 Dispenser, Rinse G Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

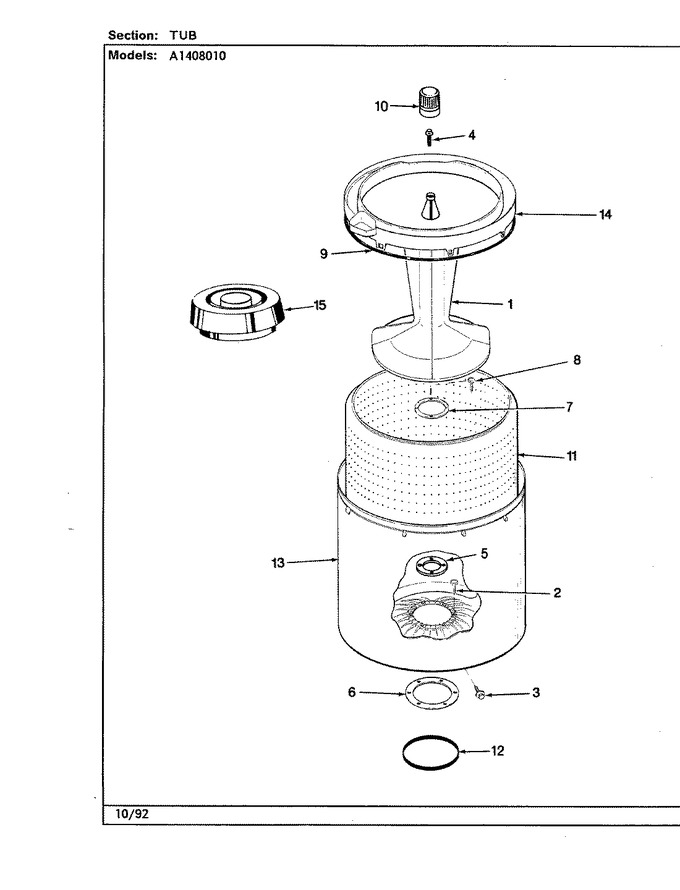

Diagram for A1408010
