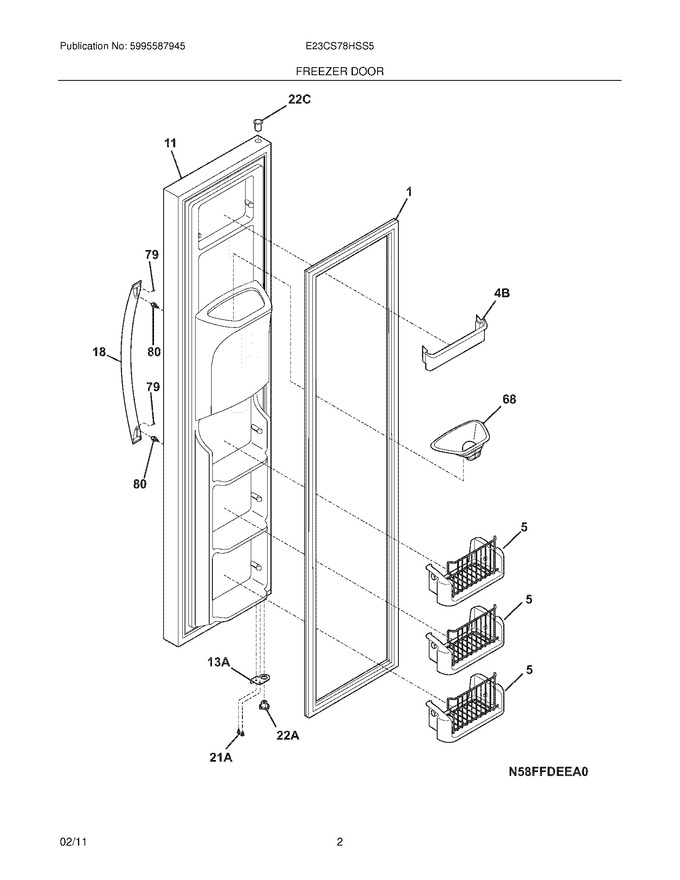

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545006 | Bin-tilt Out,tilt-out |
|
- | |||||
| 11 | 241837126 | Door-frzr,stainless ,complete Assy |
|
$ 517.30 | |||||
| 18 | 241531413 | S/a Pur-door Handle |
|
- | |||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 241531502) |
|
Immediately | $ 18.60 | ||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 242000502 | Bearing-hinge,black ,lower |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 4B | 241511701 | Bin-door,frzr-upper (Replaces: 241808218) |
|
Immediately | $ 67.21 | ||||
| F1 | 241510202 | Gasket-frzr Door,white ,magnetic |
|
$ 286.53 | |||||
| FNI | 240552102 | Harness-wiring,door |
|
$ 77.60 | |||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
