SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet

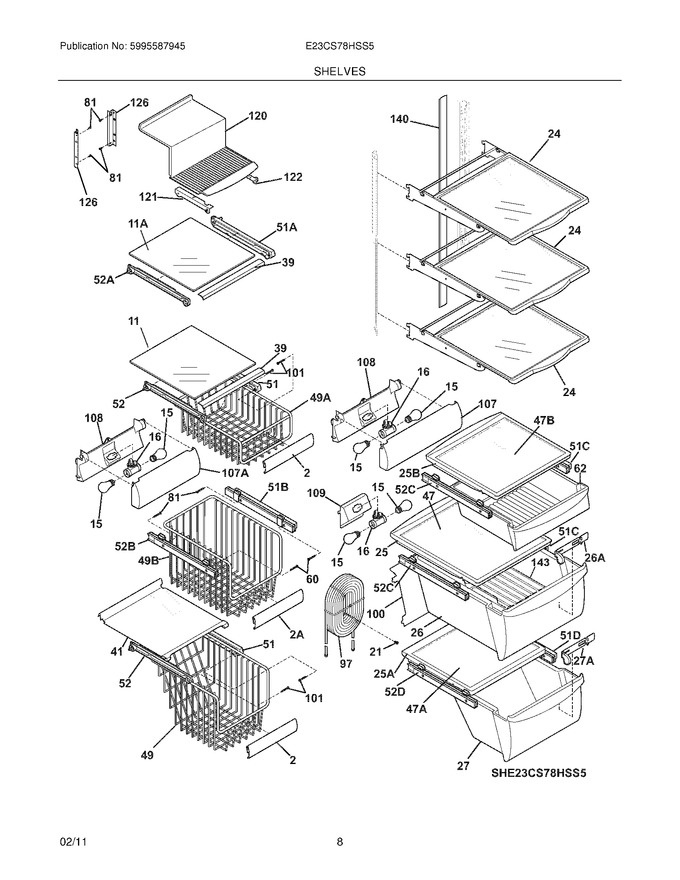

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241539502		Trim-basket				$ 34.45
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 86.45
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	241753102		Shelf-``spill-safe``,cantilever ,sliding				$ 449.55
25	241565002		Cover-crisper Pan,upper				$ 159.44
26	240351049		Pan-crisper,upper				$ 108.75
27	240351240		Pan-crisper,lower   (Replaces: 240351225)				$ 203.45
39	240367604		Trim-shelf,front				$ 128.10
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241541802		Basket-sliding		Appelez-nous	-
51	241514501		Hanger-basket,rh				$ 73.71
52	241514601		Hanger-basket,lh				$ 76.55
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	240599706		Pan-meat			Immediately	$ 358.66
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532005		Water Tank				$ 150.92
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241513402		Shield-light,meat Pan				$ 59.90
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 74.42
121	241504701		Rail-ice Cream Shelf,lh				$ 64.49
122	241504702		Rail-ice Cream Shelf,rh				$ 75.08
126	241674402		Channel,auger Mtg ,rh				$ 43.24
126	241674401		Channel,auger Mtg ,lh				$ 47.48
140	240430505		Channel,wtr Tube Cover				$ 68.38
143	240423305		Divider-crisper Pan				$ 123.17
11A	240443358		Shelf-freezer,glass ,upper				$ 97.07
25A	241564301		Cover-crisper Pan,lower				$ 89.31
25B	241565701		Cover-meat Pan				$ 89.15
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 69.46
2A	241539501		Trim-basket		Appelez-nous	-
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443391		Insert-pan Cover,glass   (Replaces: 240443356)			Immediately	$ 123.62
49A	241541902		Basket-sliding,upper ,half		Appelez-nous	-
49B	241541702		Basket-sliding,mid		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 63.79
51B	240579803		Hanger-basket,rh				$ 85.05
51C	240579821		Hanger-basket,13.00 ,rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,10.19 ,rh   (Replaces: 240579808)				$ 102.06
52A	241514801		Hanger-shelf Glass,lh				$ 343.75
52B	240579804		Hanger-basket,lh				$ 92.56
52C	240579819		Hanger-basket,13.00 ,lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket,10.19 ,lh   (Replaces: 240579806)				$ 100.65
F107	241521802		Shield-light,frzr				$ 31.38
F26A	241638101		Frame-humidity Control				$ 51.74
NI	241868034		Energy Guide		Appelez-nous	-
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	241513101		Harness-wiring		Appelez-nous	-
NI	241510802		Harness-wiring,frz Light				$ 41.81

    View Diagram in Separate Window       Print Part List
