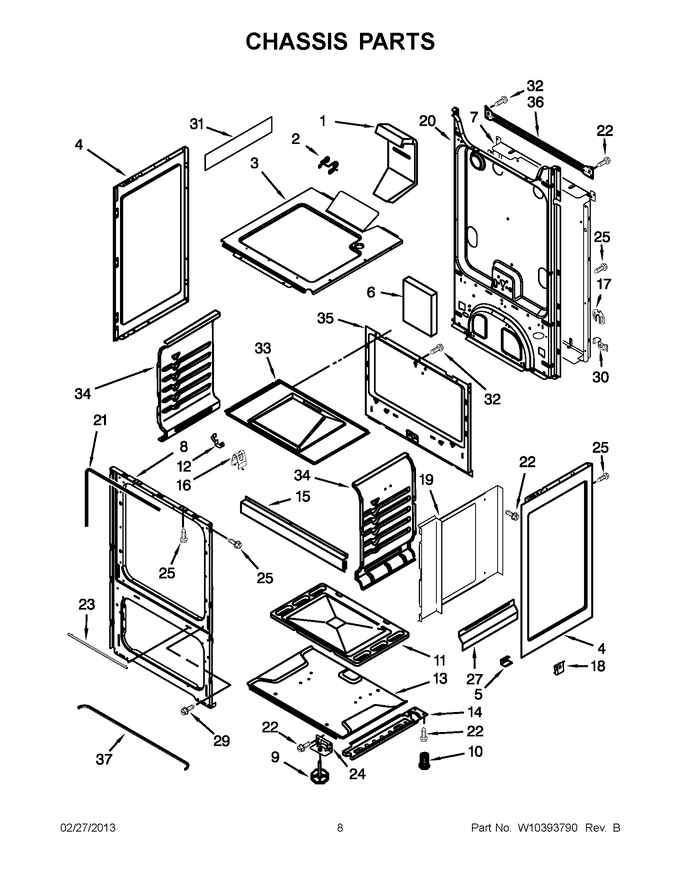

04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10116396 | Box, Flue (Replaces: W10116396) |
|
$ 80.13 | |||||
| 2 | 98013690 | Spring, Torsion (flue Box) |
|
- | |||||
| 3 | W10168214 | Box, Burner |
|
- | |||||
| 4 | W11501467 | White (Replaces: 98010061) |
|
- | |||||
| 5 | 98005502 | Clip, Oven Botton |
|
$ 12.10 | |||||
| 6 | W10185442 | Counter Weight |
|
- | |||||
| 7 | W10165402 | Cover, Main Rear |
|
- | |||||
| 8 | W10212614 | Frame, Front |
|
- | |||||
| 9 | WP3196037 | Foot, Front (Replaces: W10153610) |
|
$ 74.67 | |||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 11 | 98004450 | Bottom, Oven |
|
$ 166.37 | |||||
| 12 | 98005642 | Clip, Therm Bulb |
|
Immediately | $ 74.64 | ||||
| 13 | 98003945 | Baffle, Base |
|
- | |||||
| 14 | 98003830 | Rail, Base |
|
- | |||||
| 15 | 98012912 | Support, Oven Burner |
|
- | |||||
| 16 | 98007109 | Retainer, Thermocouple |
|
- | |||||
| 17 | 98005713 | Retainer, Burner |
|
- | |||||
| 18 | 98009179 | U-nut |
|
$ 12.02 | |||||
| 19 | 98017387 | Baffle, Side |
|
- | |||||
| 20 | 98003944 | Back, Main |
|
- | |||||
| 21 | W10170595 | Seal, Oven Door |
|
- | |||||
| 22 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 23 | W10209302 | Seal, Door |
|
- | |||||
| 24 | 98007126 | Base, Foot |
|
- | |||||
| 25 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 26 | W10555328 | Seal, Broiler Door (Replaces: W10170594) |
|
$ 146.30 | |||||
| 27 | 98007191 | Shield, Heat (lower) |
|
- | |||||
| 28 | 98010054 | Support, Rear |
|
- | |||||
| 29 | WP98008545 | Screw, Trim (Replaces: 98008545) |
|
$ 15.94 | |||||
| 30 | 98005026 | Clip, Tubing |
|
- | |||||
| 31 | 98015346 | Foil, Side |
|
- | |||||
| 32 | 98006634 | Screw |
|
- | |||||
| 33 | 98004448 | Top, Oven |
|
- | |||||
| 34 | 98004451 | Side, Oven (left Hand) |
|
- | |||||
| 34 | 98004452 | Side, Oven (right Hand) |
|
- | |||||
| 35 | W10180589 | Back, Oven |
|
- | |||||
| NI | W11684896 | Insulation, Back (Replaces: W10137234) |
|
- | |||||
| NI | W11684895 | Insulation, Wrap (Replaces: W10206735) |
|
- |
