View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

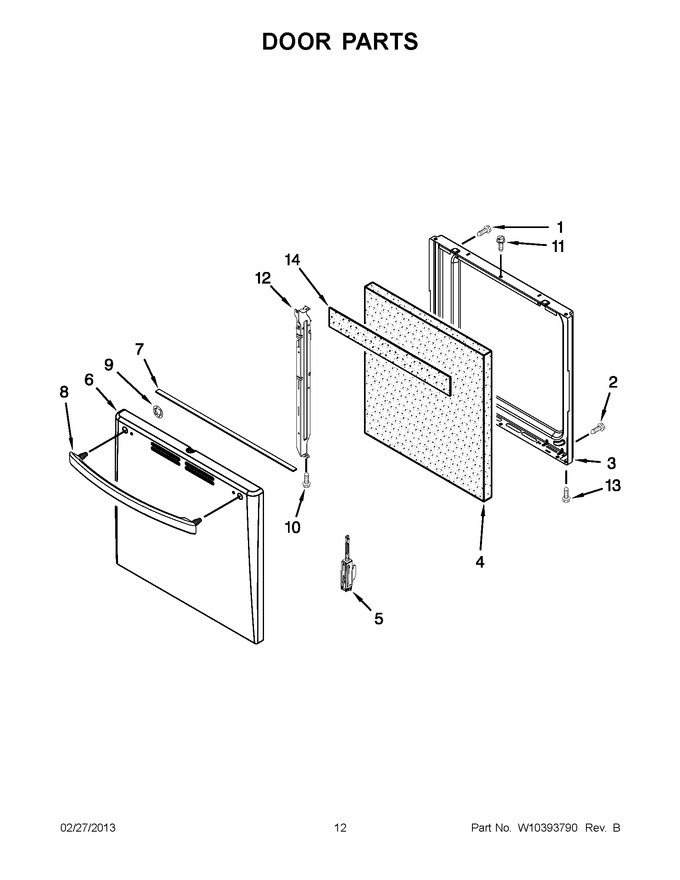

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533842 | Screw (Replaces: 8533842) |
|
$ 6.26 | |||||
| 2 | W11206744 | Screw (Replaces: 98008699) |
|
$ 12.20 | |||||
| 3 | 98010414 | Liner, Door |
|
- | |||||
| 4 | W10208853 | Insulation, Door |
|
- | |||||
| 5 | 98017873 | Hinge, Oven Door |
|
$ 34.24 | |||||
| 6 | W10209296 | Panel-door |
|
- | |||||
| 7 | W10205601 | Seal, Oven Door |
|
- | |||||
| 8 | WP98004947 | White (Replaces: 98004947) |
|
$ 127.54 | |||||
| 9 | WP98004650 | Nut, Push (Replaces: 98004650) |
|
$ 6.26 | |||||
| 10 | WP59002061 | Screw (Replaces: 98004993) |
|
$ 6.98 | |||||
| 11 | 3196166 | White (Replaces: 98006727) |
|
$ 6.31 | |||||
| 12 | 98004629 | Retainer (left Hand) |
|
- | |||||
| 12 | 98004564 | Retainer (right Hand) |
|
- | |||||
| 13 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 14 | W10157839 | Retainer, Insulation |
|
- |
