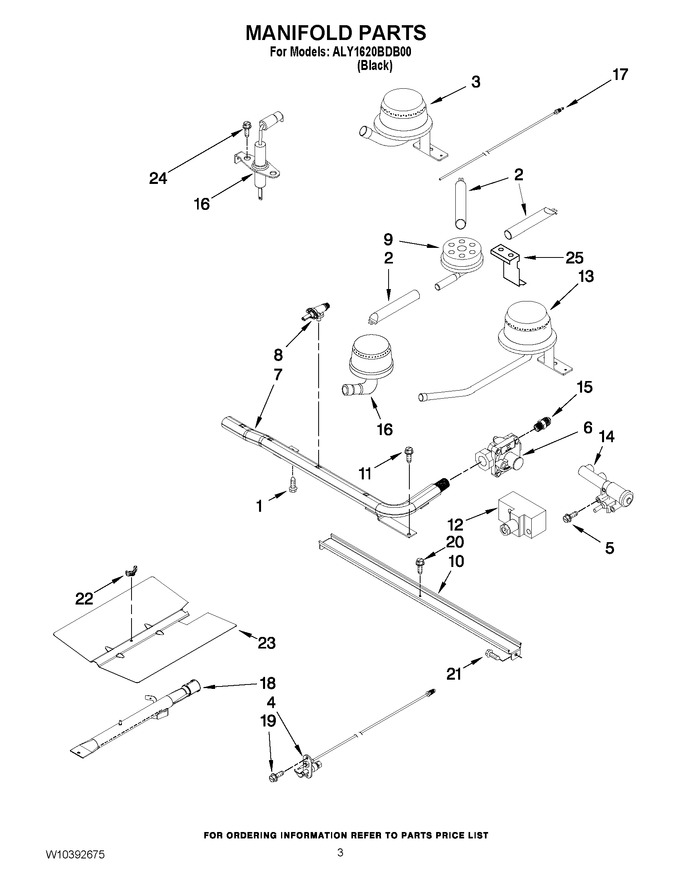

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P639-60		Screw				$ 5.53
2	7506P152-60		Extension, Tubing (front)		Appelez-nous	-
2	7506P153-60		Extension, Tubing (rear)		Appelez-nous	-
3	7505P263-60		Fitting, Orifice (front)		Appelez-nous	-
4	74009852		Burner, Pilot   (Replaces: 7505P338-60)				$ 90.89
5	WPY706189		Screw   (Replaces: 7101P347-60)			Immediately	$ 6.47
6	7510P098-60		Regulator		Appelez-nous	-
7	7513P467-60		Pipe, Manifold				$ 214.70
8	7502P523-60		Valve, Burner (lr, Rr)		Appelez-nous	-
8	7502P524-60		Valve, Burner (front)		Appelez-nous	-
9	7506P154-60		Cup, Tubing				$ 96.64
10	3807F747-45		Support, Burner		Appelez-nous	-
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
12	7527P115-60		Elbow, Block		Appelez-nous	-
13	7505P264-60		Fitting, Orifice (lr, Rr)		Appelez-nous	-
14	74002413		Ignitor, Piezo   (Replaces: 7432P085-60)				$ 160.72
15	7507P388-60		Fitting, Union		Appelez-nous	-
16	7432P077-60		Electrode, Top Burner				$ 26.53
17	7506P415-60		Tubing, Gas (3/16`` Od X 40``)		Appelez-nous	-
17	7506P411-60		Tubing, Gas (1/4`` Od X 35.5``)		Appelez-nous	-
18	7505P360-60		Burner, Oven		Appelez-nous	-
19	WP3400094		Screw   (Replaces: 7101P188-60)				$ 7.14
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 12.62
21	WP7101P498-60		Screw   (Replaces: 7101P498-60)				$ 6.74
22	7103P030-60		Wing Nut				$ 6.37
23	3601P360-45		Spreader, Flame				$ 10.98
24	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
25	3604F462-45		Shield, Spark		Appelez-nous	-
